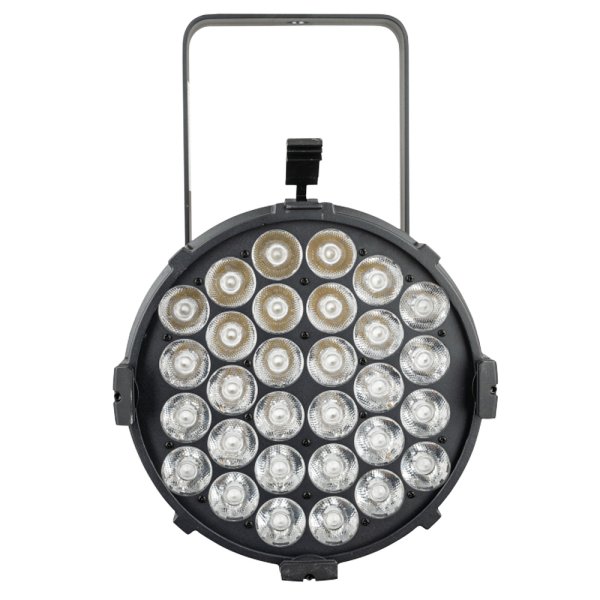

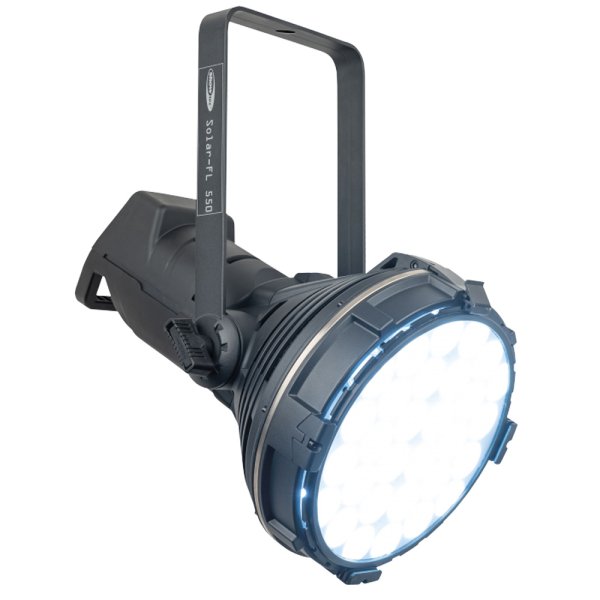

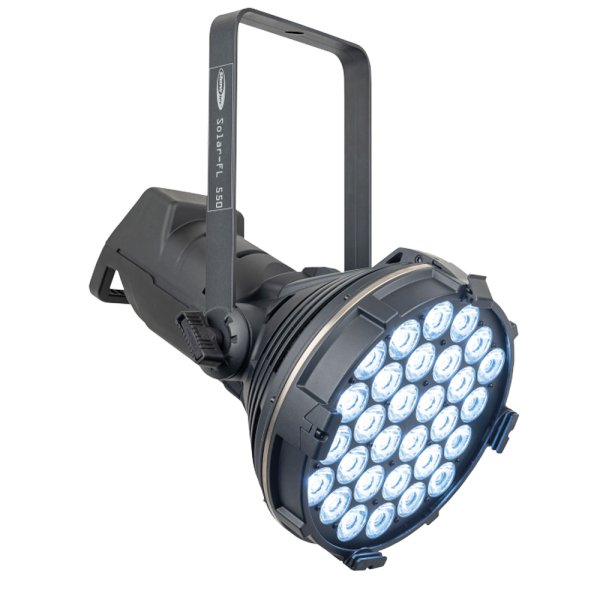

HIGHLITE Showtec Solar FL-550 [46250v]
商品詳細
High light output
CRI 92

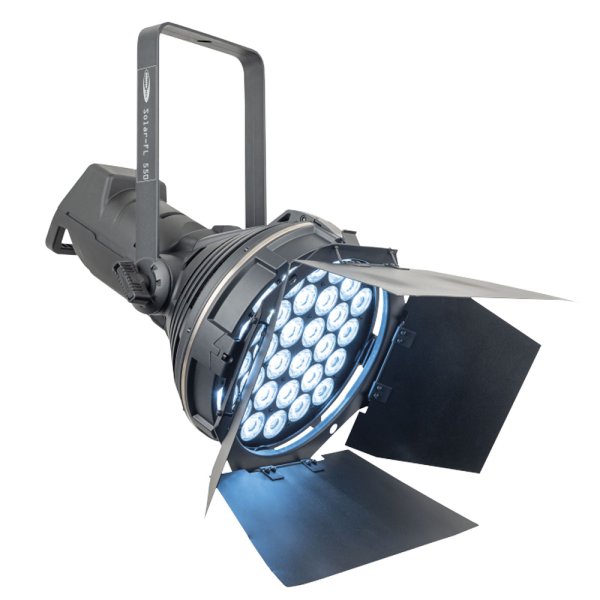

Wide range of beam shapers available
Stand alone function
CREE LED
Light Source Type
LED
Light Source Quantity
24
Light Source Power
20 W
LED Colour Type
White
Refresh Rate (Max.)
1200 kHz
Illuminance @ 2 m
160182 lx
Luminous Flux (Total)
38900 lm
CRI
92
CCT
7400 K
Optical
Beam Angle (Circular)
13°
Field Angle (Circular)
21°
Control and Programming
Control Mode
DMX, Manual, Stand Alone
DMX Channels
1, 2, 4
Protocols
DMX, RDM
Display
LCD
Dim Curve
Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
550 W

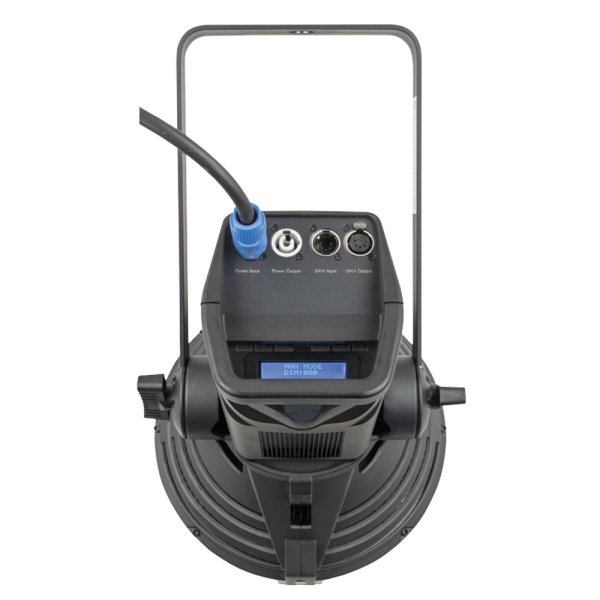

Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Cable Length
1.5 m
Length (mm)
562 mm
Width (mm)
331 mm
Height (mm)
320 mm
Weight
11.5 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Axial fan
Rigging
Mounting Options
Clamp
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
70 °C
Included Items
Included Cables
powerCON cable
Included Accessories
Filterframe, Safety cable, User Manual
Included Rigging
Bracket
■メーカーサイト
https://www.highlite.com/en/46250-solar-fl-550.html
CRI 92
Wide range of beam shapers available
Stand alone function
CREE LED
仕様
SourceLight Source Type
LED
Light Source Quantity
24
Light Source Power
20 W
LED Colour Type
White
Refresh Rate (Max.)
1200 kHz
Illuminance @ 2 m
160182 lx
Luminous Flux (Total)
38900 lm
CRI
92
CCT
7400 K
Optical
Beam Angle (Circular)
13°
Field Angle (Circular)
21°
Control and Programming
Control Mode
DMX, Manual, Stand Alone
DMX Channels
1, 2, 4
Protocols
DMX, RDM
Display
LCD
Dim Curve
Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
550 W
Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Cable Length
1.5 m
サイズ
Mechanical SpecificationsLength (mm)
562 mm
Width (mm)
331 mm
Height (mm)
320 mm
Weight
11.5 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Axial fan
Rigging
Mounting Options
Clamp
Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
70 °C
Included Items
Included Cables
powerCON cable
Included Accessories
Filterframe, Safety cable, User Manual
Included Rigging
Bracket
参照
■メーカーサイト
https://www.highlite.com/en/46250-solar-fl-550.html
