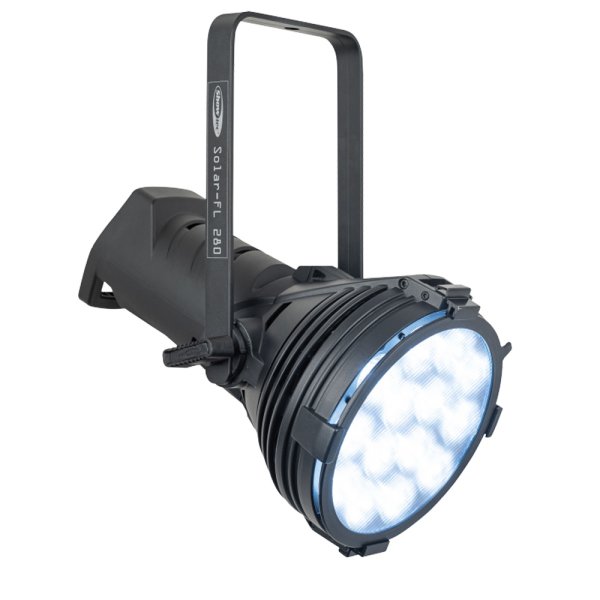

HIGHLITE Showtec Solar FL-280 [46200v]

High Light output
CRI 95
Wide range of beam shapers
Stand alone function
CREE LED

仕様

Source
Light Source Type
LED
Light Source Quantity
14
Light Source Power
20 W
LED Colour Type
White
Illuminance @ 2 m
73579 lx
Luminous Flux (Total)
18000 lm
CRI
95
CCT
7500 K

Optical
Beam Angle (Circular)
13°

Control and Programming
Control Mode
DMX, Manual, Stand Alone
DMX Channels
1, 2, 4
Display
LCD
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
280 W
Power Connector In
powerCON Blue
Power Connector Out
powerCON Grey
DMX Connector
XLR 5P In/Out
DMX Connector In
XLR 5P
DMX Connector Out
XLR 5P
Cable Length
1.5 m

サイズ

Mechanical Specifications
Length (mm)
468 mm
Width (mm)
262 mm
Height (mm)
265 mm
Weight
7 kg
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black

Product Properties
Cooling
Axial fan

Rigging
Mounting Options
Clamp

Thermal Specifications
Maximum Ambient Temperature
40 °C
Maximum Surface Temperature
70 °C

Included Items
Included Cables
powerCON cable
Included Accessories
User Manual
Included Rigging
Bracket
