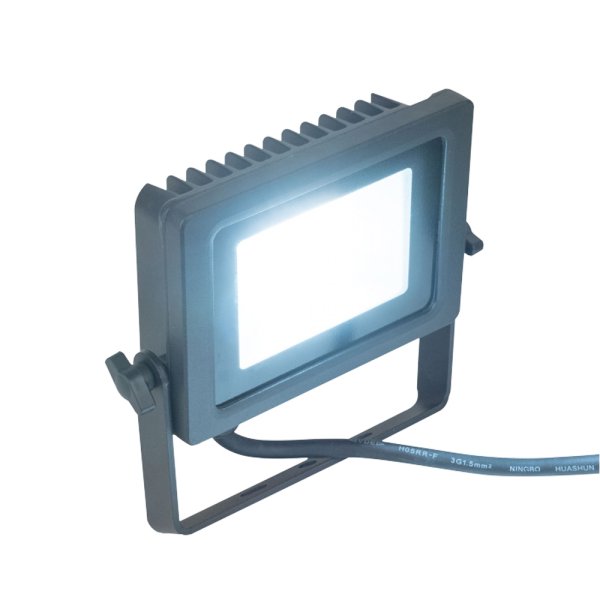

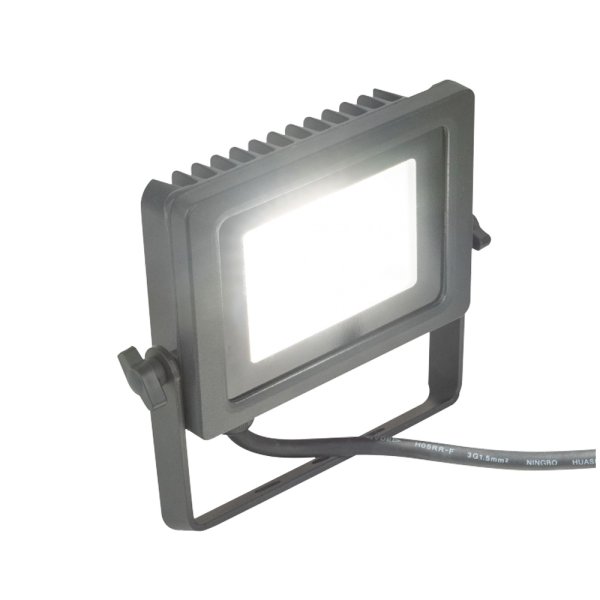

HIGHLITE Showtec Aviano Tour 20W CCT [31401]

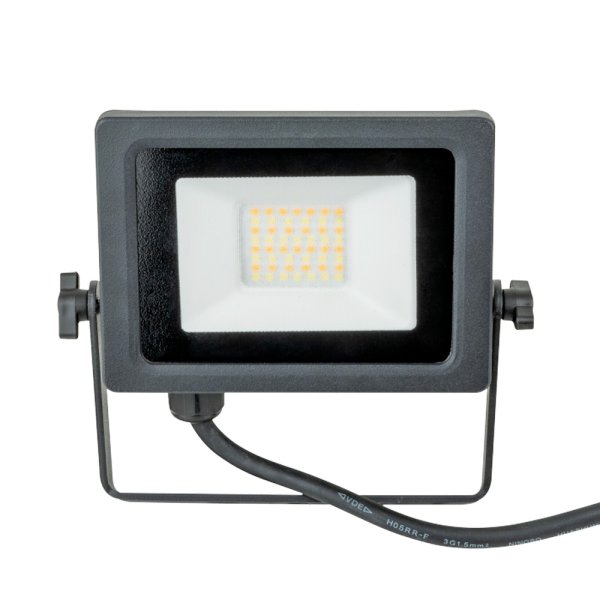

48x 0.4 W LEDs

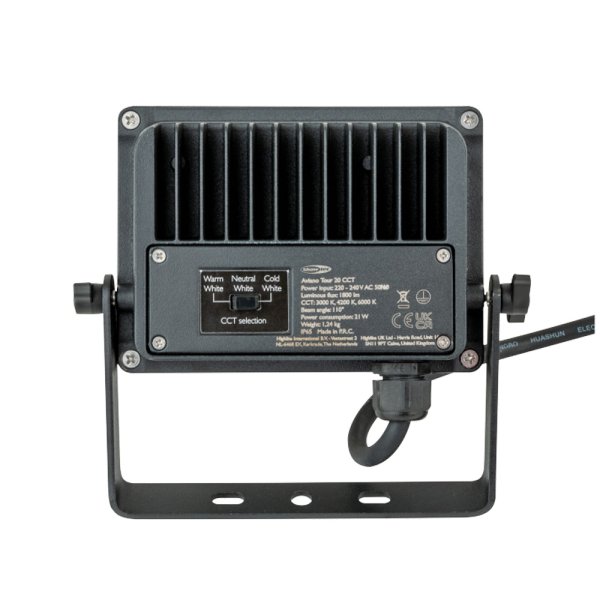

Selectable colour temperature (3000 K, 4200 K or 6000 K)
Housing IP65, cable IP54

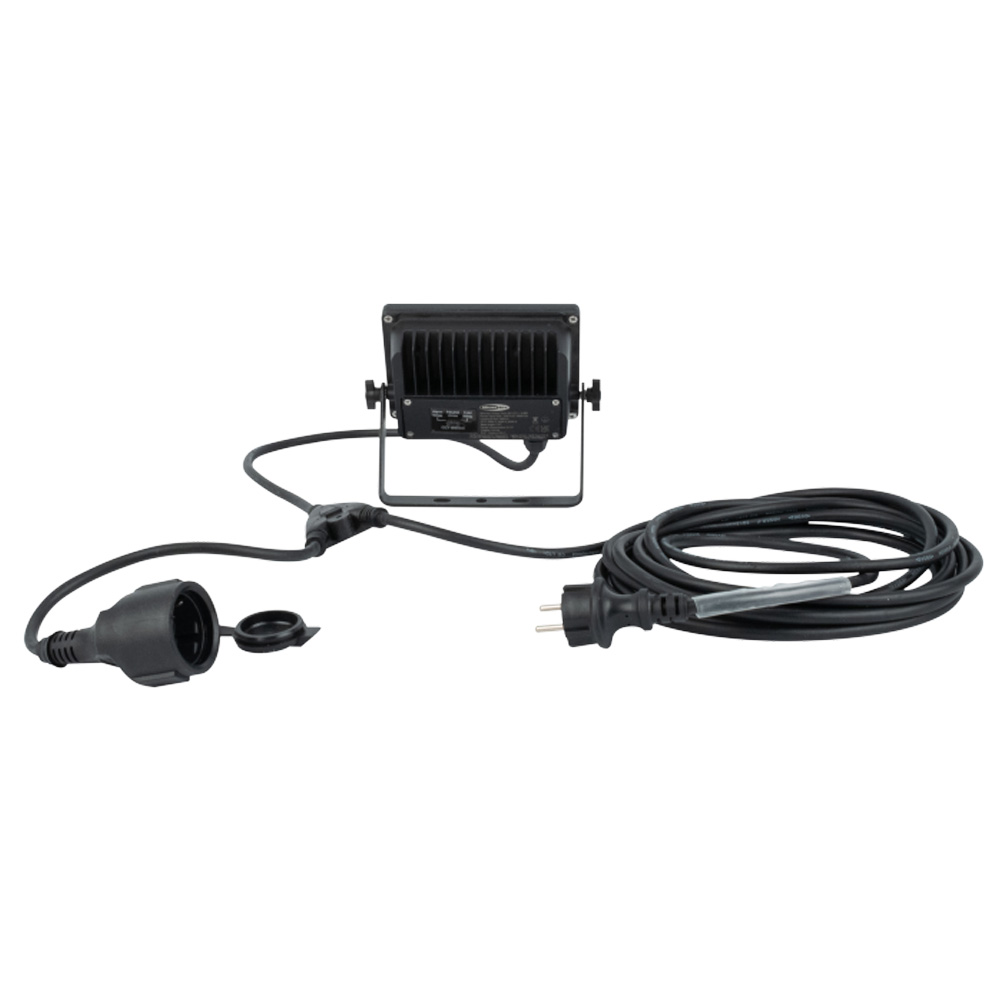

Cable with additional power socket
Strong mounting bracket

仕様

Source
Light Source Type
LED
Light Source Quantity
48
Light Source Power
0.4 W
LED Colour Type
WW, CW, NW
Luminous Flux (Total)
1800 lm
CRI
80
Minimum CCT
3000 K
Maximum CCT
6000 K

Optical
Beam Angle (Circular)
110°

Electrical Specifications and Connections
Power Supply
220V-240 V AC 50 Hz
Power Consumption
20 W
Power Connector In
Schuko Plug
Power Connector Out
Schuko Socket
Cable Length
6 m
Maximum Wire Size
1.5 mm²

サイズ

Mechanical Specifications
Length (mm)
179 mm
Width (mm)
47 mm
Height (mm)
164 mm
Weight
1.24 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection
Type Floodlight
Symmetric

Rigging
Mounting Options
Bracket

Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
