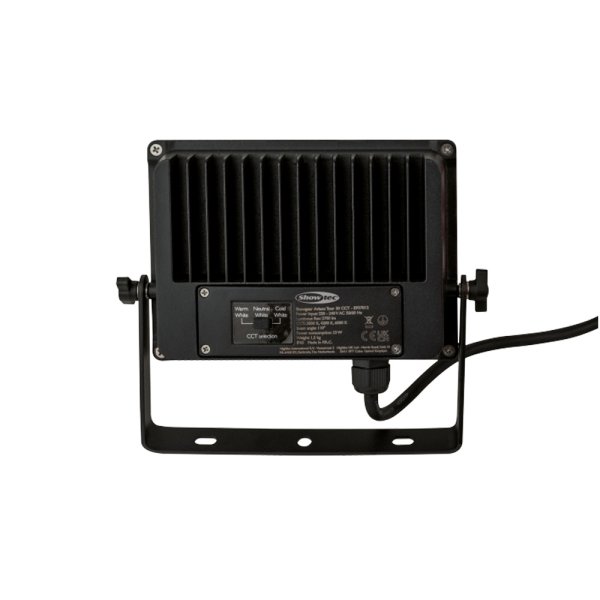

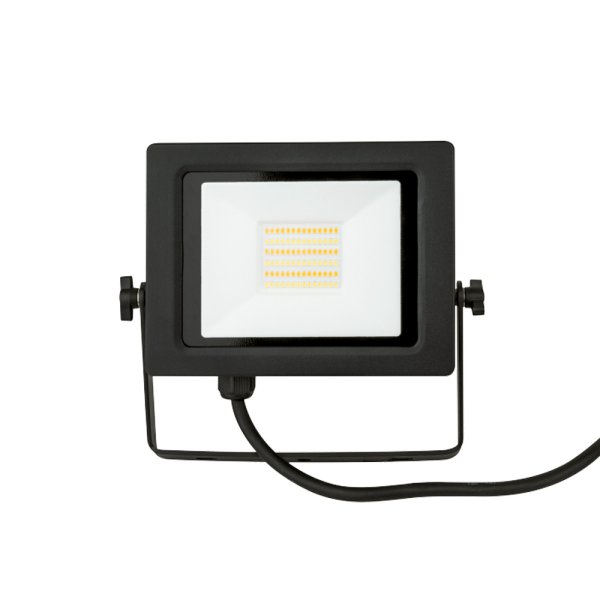

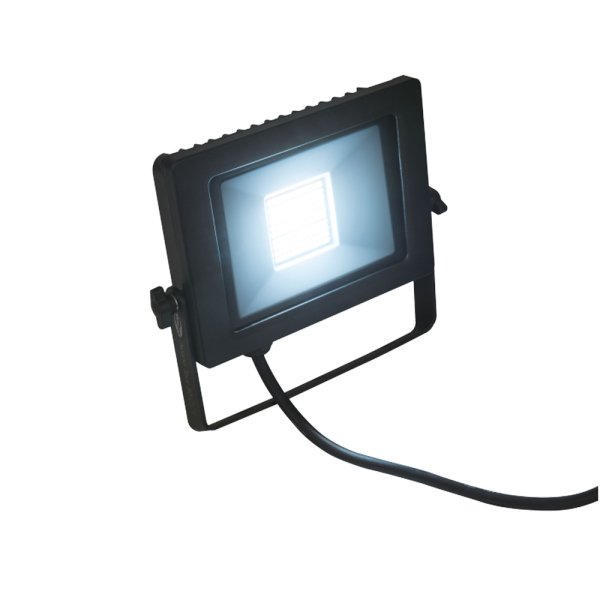

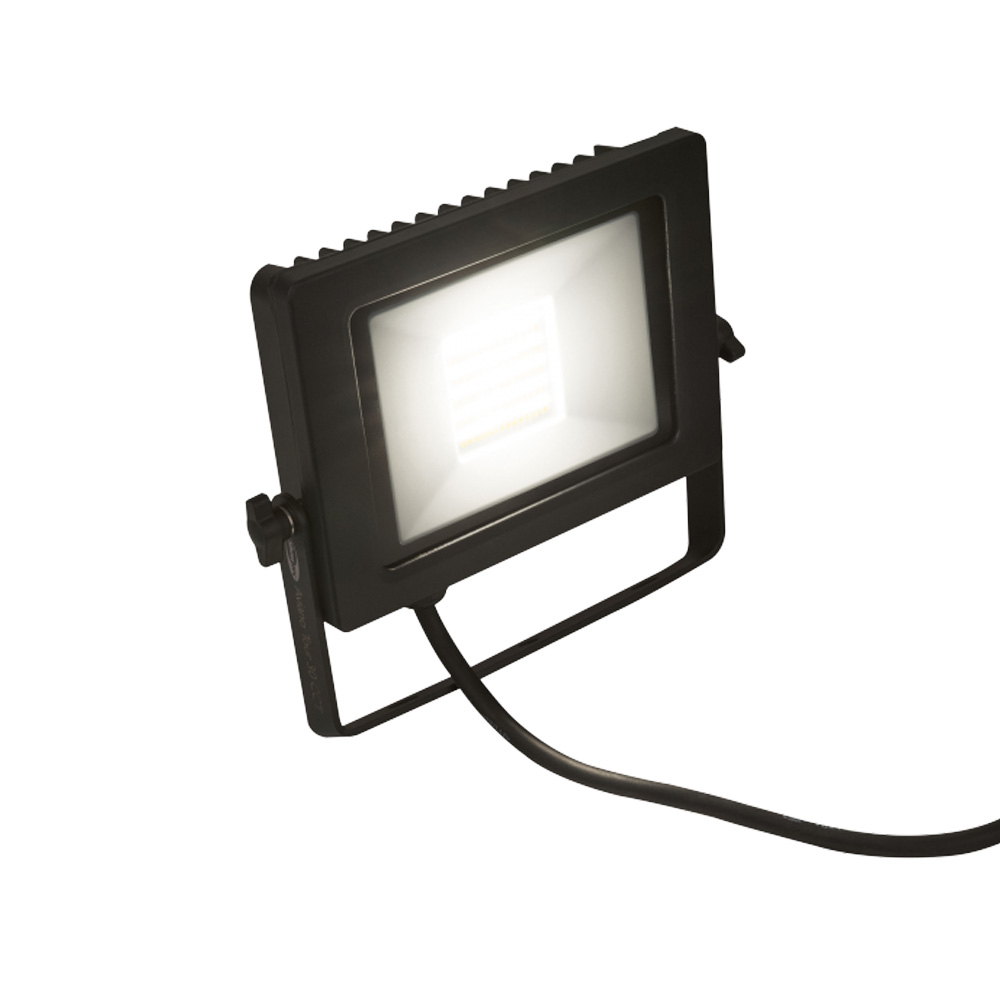

HIGHLITE Showtec Aviano Tour 30W CCT [31402]
商品詳細
72x 0.4 W LEDs
Selectable colour temperature (3000 K, 4200 K or 6000 K)
Housing IP65, cable IP54

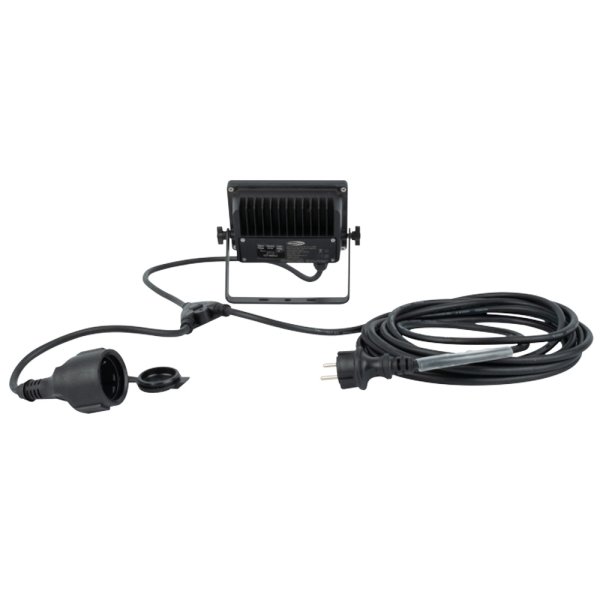

Cable with additional power socket
Strong mounting bracket
Light Source Type
LED
Light Source Quantity
72
Light Source Power
0.4 W
LED Colour Type
WW, CW, NW
Luminous Flux (Total)
2700 lm
CRI
80
Minimum CCT
3000 K
Maximum CCT
6000 K
Optical
Beam Angle (Circular)
110°
Electrical Specifications and Connections
Power Supply
220V-240 V AC 50 Hz
Power Consumption
30 W
Power Connector In
Schuko Plug
Power Connector Out
Schuko Socket
Cable Length
6 m
Maximum Wire Size
1.5 mm²
Length (mm)
221 mm
Width (mm)
47 mm
Height (mm)
190 mm
Weight
2.1 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Type Floodlight
Symmetric
Rigging
Mounting Options
Bracket
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
■メーカーサイト
https://www.highlite.com/en/31402-aviano-tour-30w-cct.html
Selectable colour temperature (3000 K, 4200 K or 6000 K)
Housing IP65, cable IP54
Cable with additional power socket
Strong mounting bracket
仕様
SourceLight Source Type
LED
Light Source Quantity
72
Light Source Power
0.4 W
LED Colour Type
WW, CW, NW
Luminous Flux (Total)
2700 lm
CRI
80
Minimum CCT
3000 K
Maximum CCT
6000 K
Optical
Beam Angle (Circular)
110°
Electrical Specifications and Connections
Power Supply
220V-240 V AC 50 Hz
Power Consumption
30 W
Power Connector In
Schuko Plug
Power Connector Out
Schuko Socket
Cable Length
6 m
Maximum Wire Size
1.5 mm²
サイズ
Mechanical SpecificationsLength (mm)
221 mm
Width (mm)
47 mm
Height (mm)
190 mm
Weight
2.1 kg
IP Rating
IP65
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Type Floodlight
Symmetric
Rigging
Mounting Options
Bracket
Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Operating Temperature
-10 °C
