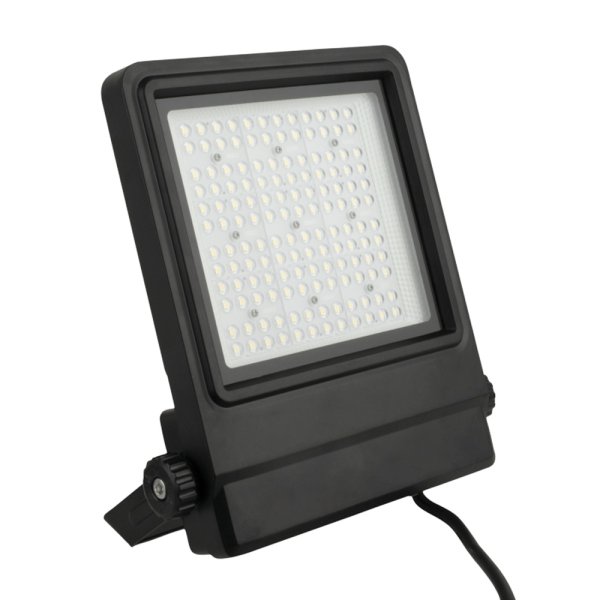

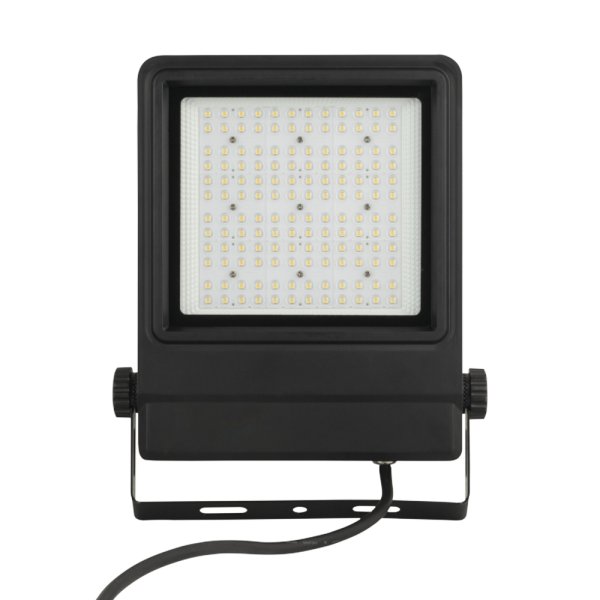

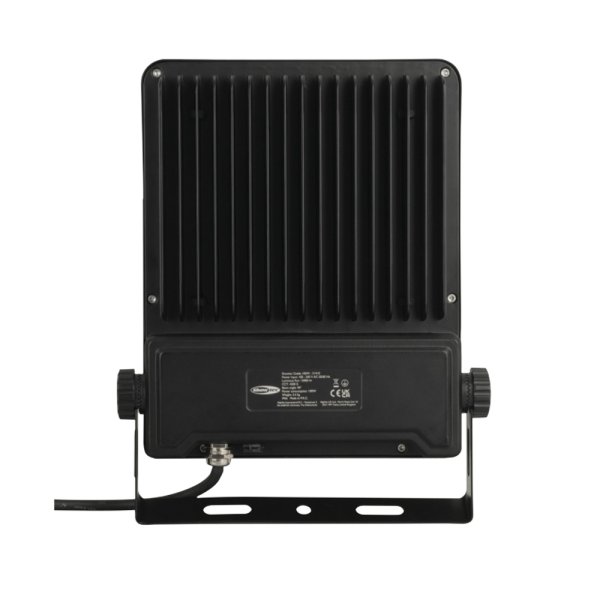

HIGHLITE Showtec Cedda 100W LED Floodlight [31410]
商品詳細
244x 0.4 W LEDs
12,000 lumens at 4200 K
Housing IP65, cable IP54

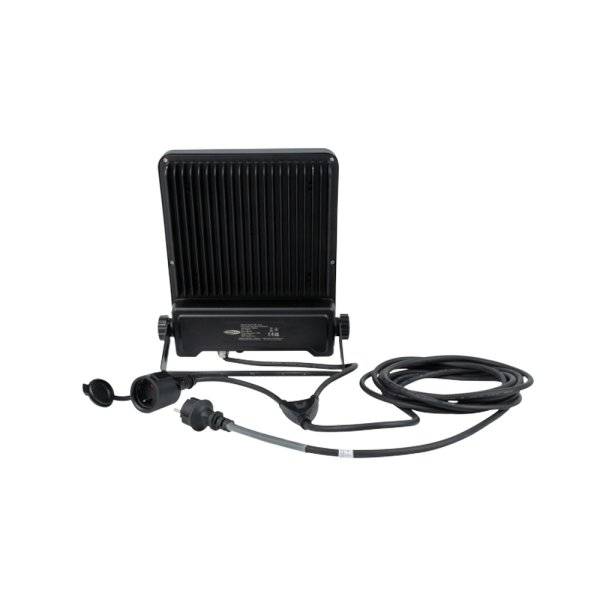

Cable with additional power socket
Strong mounting bracket
Light Source Type
LED
Light Source Quantity
244
Light Source Power
0.4 W
LED Colour Type
NW
Luminous Flux (Total)
12000 lm
CRI
80
CCT
4200 K
Optical
Beam Angle (Circular)
90°
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
100 W
Power Connector In
Schuko Plug
Power Connector Out
Schuko Socket
Cable Length
6 m
Length (mm)
350 mm
Width (mm)
280 mm
Height (mm)
54 mm
Weight
3.4 kg
IP Rating
IP54
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Type Floodlight
Symmetric
Thermal Specifications
Maximum Ambient Temperature
50 °C
Minimum Operating Temperature
-20 °C
■メーカーサイト
https://www.highlite.com/en/31410-cedda-100w-led-floodlight.html
12,000 lumens at 4200 K
Housing IP65, cable IP54
Cable with additional power socket
Strong mounting bracket
仕様
SourceLight Source Type
LED
Light Source Quantity
244
Light Source Power
0.4 W
LED Colour Type
NW
Luminous Flux (Total)
12000 lm
CRI
80
CCT
4200 K
Optical
Beam Angle (Circular)
90°
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
100 W
Power Connector In
Schuko Plug
Power Connector Out
Schuko Socket
Cable Length
6 m
サイズ
Mechanical SpecificationsLength (mm)
350 mm
Width (mm)
280 mm
Height (mm)
54 mm
Weight
3.4 kg
IP Rating
IP54
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Convection
Type Floodlight
Symmetric
Thermal Specifications
Maximum Ambient Temperature
50 °C
Minimum Operating Temperature
-20 °C
参照
■メーカーサイト
https://www.highlite.com/en/31410-cedda-100w-led-floodlight.html
