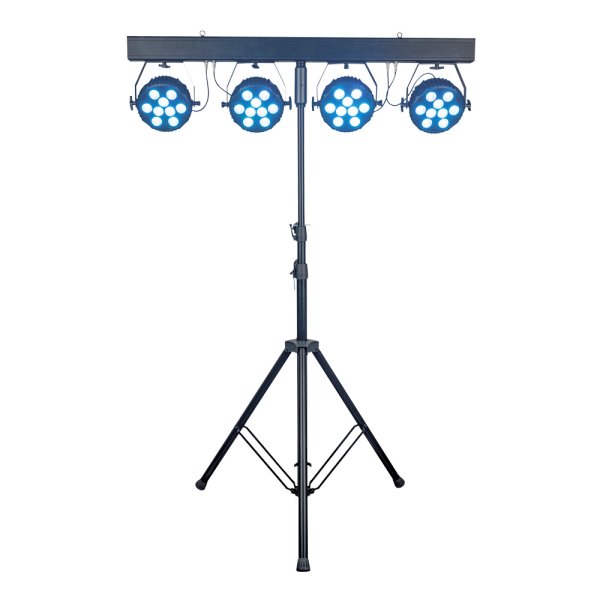

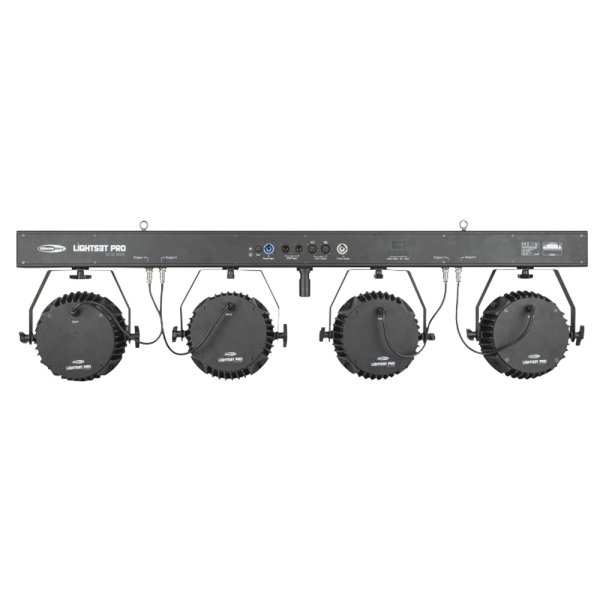

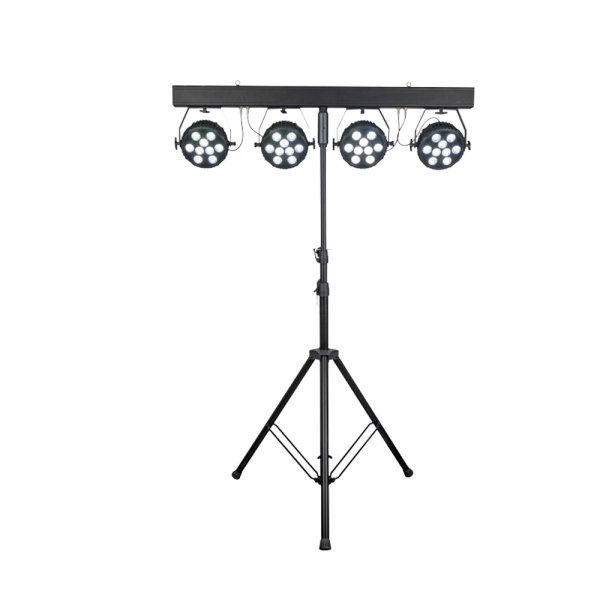

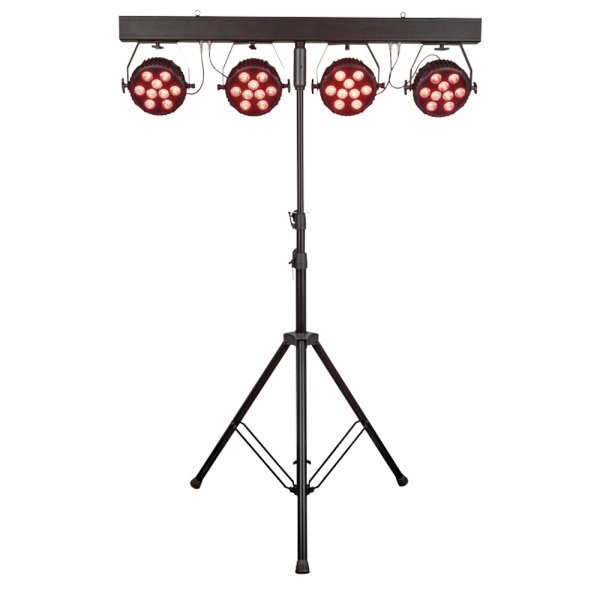

HIGHLITE Showtec Lightset PRO 9/10 RGBM [30290]

Showtec Lightset Pro 9/10. Order Code 30290 from Highlite International on Vimeo.

Professional T-bar
4-in-1, 10 W RGBM LEDs
Compact sturdy spots
Multiple optional Beam Shapers
5 m Power Pro cable included

仕様

Source
Light Source Type
LED
Light Source Quantity
36
Light Source Power
10 W
Refresh Rate
1000 Hz
Optical
Beam Angle (Circular)
8°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave
DMX Channels
4, 5, 6, 8, 10, 16, 19
Protocols
DMX, RDM
Display
OLED
Dim Curve
Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
260 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P

サイズ

Mechanical Specifications
Height (mm)
364 mm
Width (mm)
1287 mm
Depth (mm)
13.5 mm
Weight
12.6 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium, Metal
Colour
Black

Product Properties
Cooling
Convection/Axial fan

Rigging
Mounting Options
Clamp, Quick-Lock
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
45 °C
Minimum Ambient Temperature
-10 °C

Included Items
Included Cables
Power Pro Cable
Included Rigging
Quick-Lock Bracket
