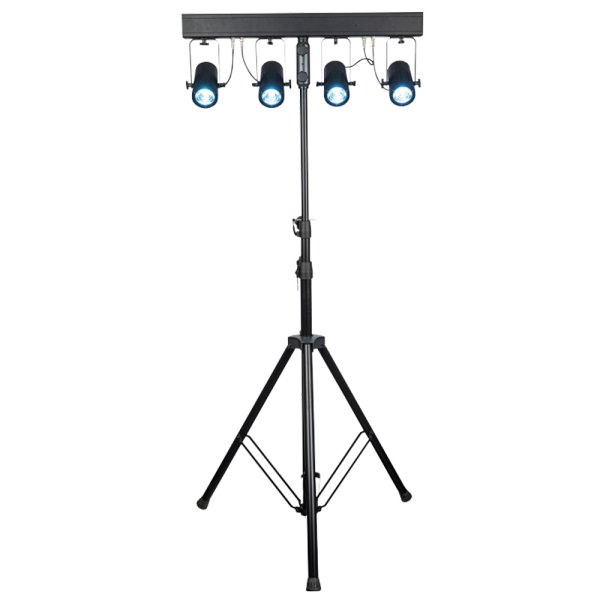

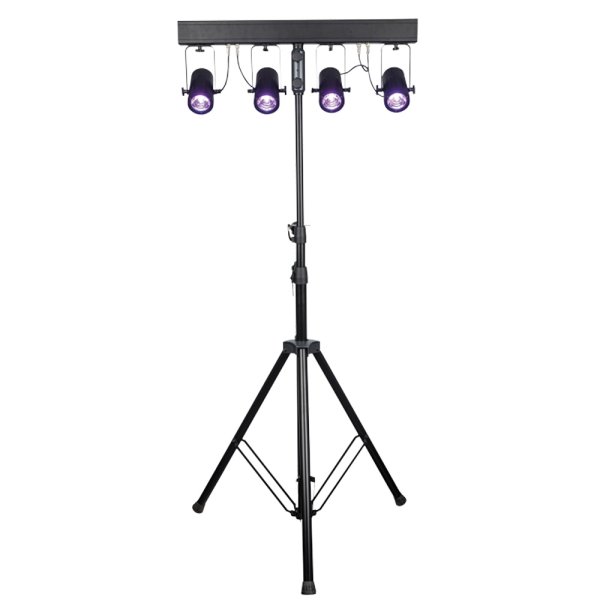

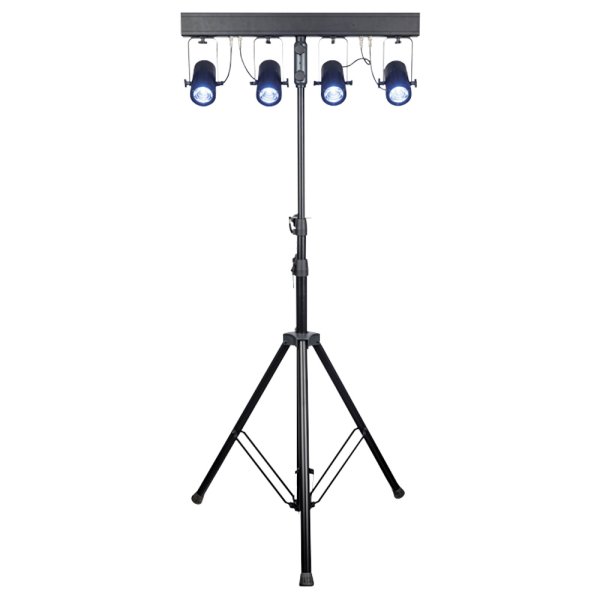

HIGHLITE Showtec Pinspot Bar 4 [30295]

Showtec Pinspot Bar 4 RGBW and Pinspot Bar 4 WW. Oder Codes 30295 & 30296 from Highlite International on Vimeo.

Four RGBW 20 W LED spots
Independent control
Super lightweight
Magnetic beamshapers included
5 m Power Pro cable included

仕様

Source
Light Source Type
LED
Light Source Quantity
4
Light Source Power
20 W
LED Colour Type
R, G, B, W
Life Expectancy
50000 h
Optical
Beam Angle (Circular)
4°
Beam Angle Max. (Circular)
20°

Control and Programming
Control Mode
Auto, DMX, Manual, Master Slave, Sound
DMX Channels
4, 5, 6, 8, 10, 16, 19
Protocols
DMX, RDM
Display
OLED
Dim Curve
Linear, Square, I-Square, S-Curve
Dimmer Resolution
8 bit

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

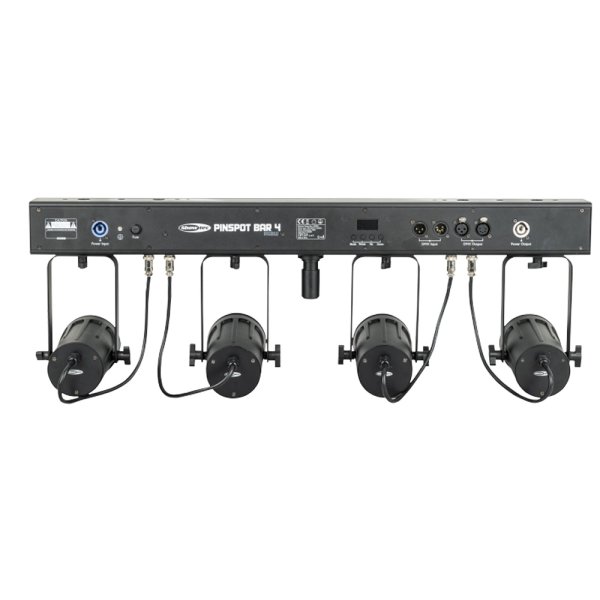

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
90 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P

サイズ

Mechanical Specifications
Height (mm)
278 mm
Width (mm)
800 mm
Depth (mm)
177 mm
Weight
6.5 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black
Product Properties
Cooling
Axial fan

Rigging
Mounting Options
Clamp, Quick-Lock
Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
powerCON cable
Included Accessories
Beam Shapers
Included Rigging
Quick-Lock Bracket, Rigging Eye
