HIGHLITE Showtec Pixel Dot [44530]

Showtec PixelDot. Product Code 44530 from Highlite International on Vimeo.

50 mm RGB LED Pixel Dot
Suitable for a fixed ceiling installation
Daisy-chainable to up to 40 units per Pixelcontroller output

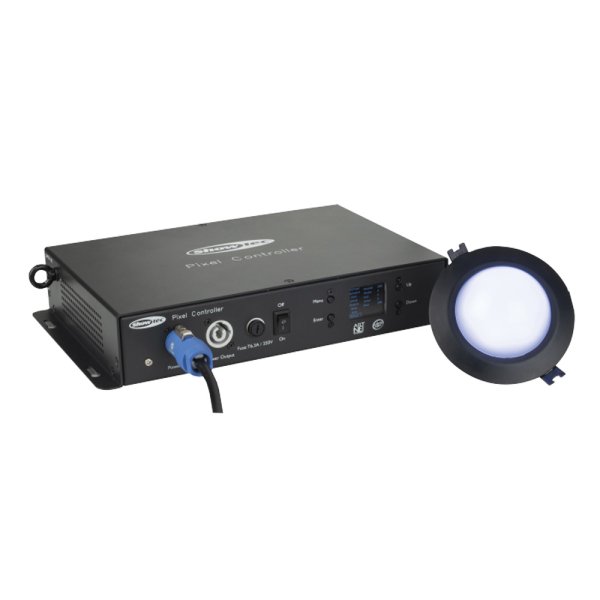

Controllable by the Pixelcontroller through DMX, Art-Net and Kling-Net

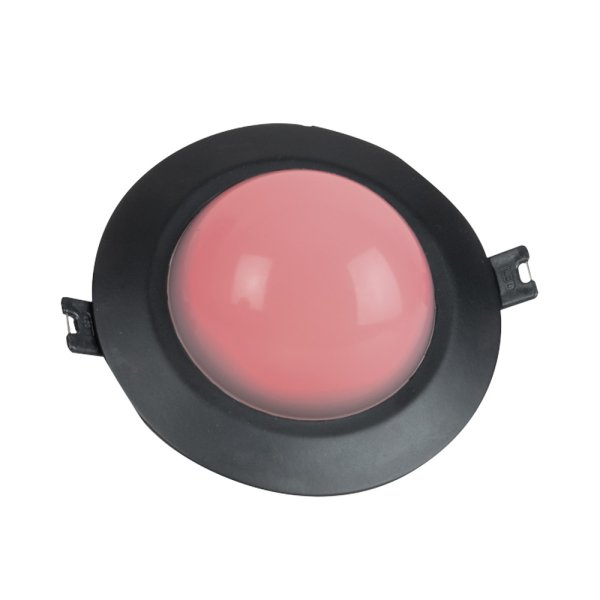

Black housing and white frosted cover

仕様

Source
Light Source Type
LED
Light Source Quantity
6
Light Source Power
3 W
Refresh Rate
1000 Hz

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
24 V DC

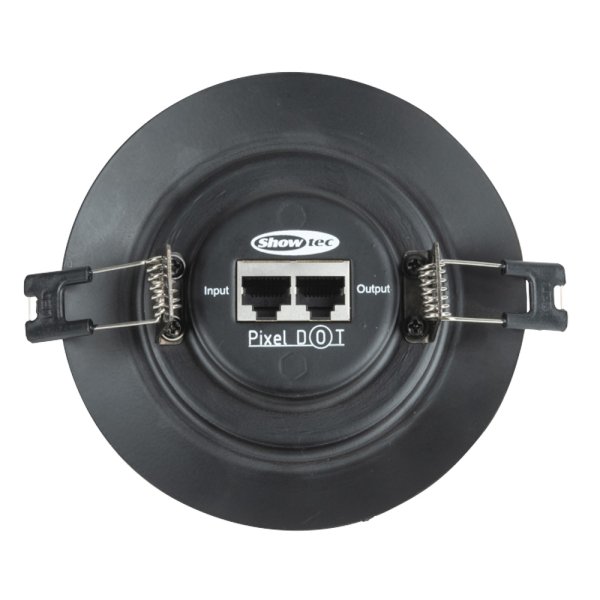

Data Connector In
RJ45
Data Connector Out
RJ45

サイズ

Mechanical Specifications
Height (mm)
54 mm
Width (mm)
120.5 mm
Weight
0.1 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black, White

Product Properties
Cooling
Convection

Rigging
Mounting Options
Ceiling, Spring Clamp, Surface, Wall

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Ambient Temperature
-5 °C

Included Items
Included Cables
CAT-5 Cable
Control and Programming
Control Mode
Art-Net, Built-in Program, DMX, Kling-Net, Manual, Master Slave
DMX Channels
3
Protocols
Art-Net, DMX, Kling-Net
