HIGHLITE Showtec Pixel Bubble 75 set [44570]

Showtec Pixel Bubble 75 Set. Product code 44570 from Highlite International on Vimeo.

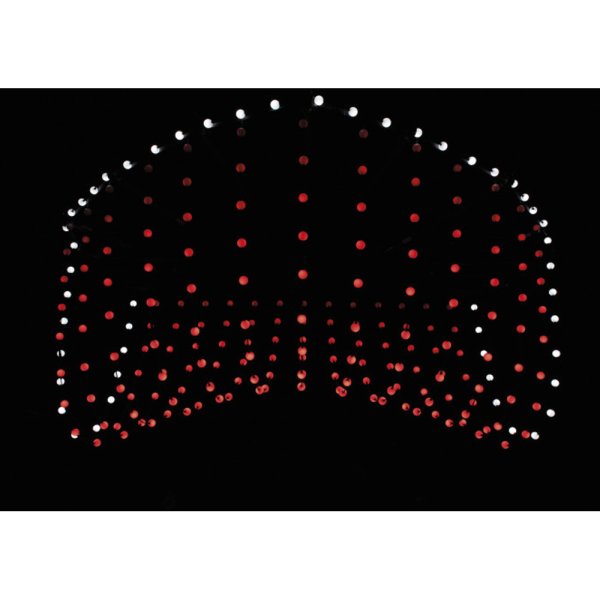

Multi-colour LED matrix set
Individual Pixel Control

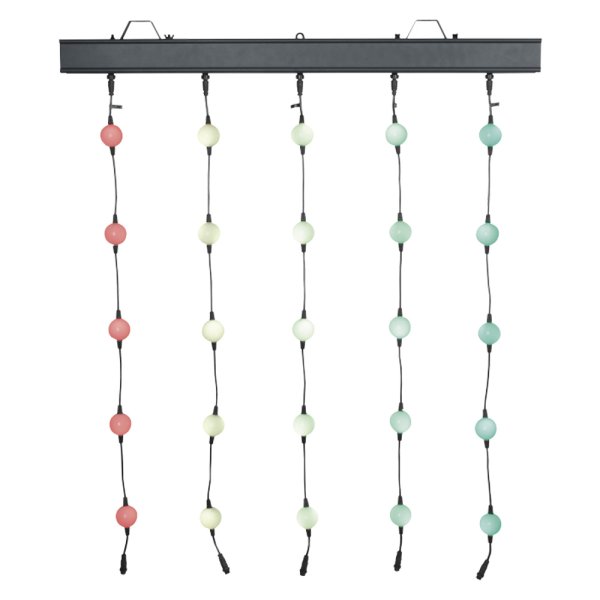

15x 1 m daisy chainable strings
PSU with 5 string outputs, each up to 6 m (19.7 ft)
5x 50 mm RGB balls per string

仕様

Source
Light Source Type
LED
Light Source Quantity
150
Refresh Rate
450 Hz
Optical
Pixel Pitch
200 mm

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
121 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Data Connector In
ProCat
Data Connector Out
ProCat

サイズ

Mechanical Specifications
Height (mm)
72 mm
Width (mm)
71 mm
Controller Height
72 mm
Controller Width
71 mm
Controller Length
1003 mm
Weight
6.3 kg
Controller Weight
3.12 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Bracket, Clamp
Safety Attachment
Yes

Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Ambient Temperature
-5 °C

Included Items
Included Cables
Power Pro Cable
Included Rigging
Bracket

Control and Programming
Control Mode
Art-Net, Built-in Program, DMX, Kling-Net, Manual, Master Slave
DMX Channels
7, 75, 150, 225, 300, 375, 450
Protocols
Art-Net, DMX, Kling-Net
Display
OLED
