HIGHLITE Showtec Aircone Q6 [40314]
商品詳細
RGBWA-UV Q6 LEDs
Adjustable Fan speed
Cylinder shape included
The Showtec Aircone Q6 is the ultimate decorative lighting effect and is widely used at various events such as concerts, festivals, weddings, corporate events and theme parks.
The Aircone Q6 is the successor to the already famous Showtec Aircones and now contains several upgrades for even more flexibility and more beautiful effects.
Its advanced colourmix system, which includes six 8 W RGBWA-UV LEDs, offers auto-run programs as well as a complete DMX control. The fan is also controlled via DMX. This allows operating the Aircone Q6 at a reduced fan speed to minimize fan noise, or at an increased fan speed to stabilize the cone when placed outside (wind!) or when positioned in different angles.
The Aircone Q6 includes a cylinder shaped cone but also can hold a pyramid cone (order code 40316).
Light Source Type
LED
Light Source Quantity
6
Light Source Power
8 W
LED Colour Type
RGBWAUV
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
150 W

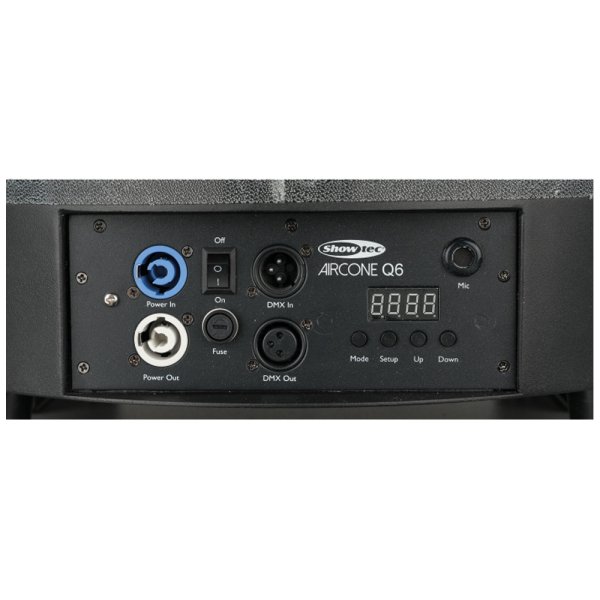

Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
Height (mm)
2700 mm
Width (mm)
470 mm
Depth (mm)
470 mm
Weight
11 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Axial fan
Rigging
Mounting Options
Quick-Lock, Surface
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro Cable
Included Rigging
Quick-Lock Bracket
Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual, Master Slave, Sound, Stand Alone, Static Dimmer
DMX Channels
3, 6, 12
Protocols
DMX
Wireless
Wireless DMX
Display
7-segment, LED
■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/deco-lights/led-shapes/40314-aircone-q6.html
Adjustable Fan speed
Cylinder shape included
The Showtec Aircone Q6 is the ultimate decorative lighting effect and is widely used at various events such as concerts, festivals, weddings, corporate events and theme parks.
The Aircone Q6 is the successor to the already famous Showtec Aircones and now contains several upgrades for even more flexibility and more beautiful effects.
Its advanced colourmix system, which includes six 8 W RGBWA-UV LEDs, offers auto-run programs as well as a complete DMX control. The fan is also controlled via DMX. This allows operating the Aircone Q6 at a reduced fan speed to minimize fan noise, or at an increased fan speed to stabilize the cone when placed outside (wind!) or when positioned in different angles.
The Aircone Q6 includes a cylinder shaped cone but also can hold a pyramid cone (order code 40316).
仕様
SourceLight Source Type
LED
Light Source Quantity
6
Light Source Power
8 W
LED Colour Type
RGBWAUV
Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
150 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector
XLR 3P In/Out
DMX Connector In
XLR 3P
DMX Connector Out
XLR 3P
サイズ
Mechanical SpecificationsHeight (mm)
2700 mm
Width (mm)
470 mm
Depth (mm)
470 mm
Weight
11 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium
Colour
Black
Product Properties
Cooling
Axial fan
Rigging
Mounting Options
Quick-Lock, Surface
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Operating Temperature
-10 °C
Included Items
Included Cables
Power Pro Cable
Included Rigging
Quick-Lock Bracket
Control and Programming
Control Mode
Auto, Built-in Program, DMX, Manual, Master Slave, Sound, Stand Alone, Static Dimmer
DMX Channels
3, 6, 12
Protocols
DMX
Wireless
Wireless DMX
Display
7-segment, LED
参照
■メーカーサイト
https://www.highlite.com/en/products/entertainment-lighting/deco-lights/led-shapes/40314-aircone-q6.html
