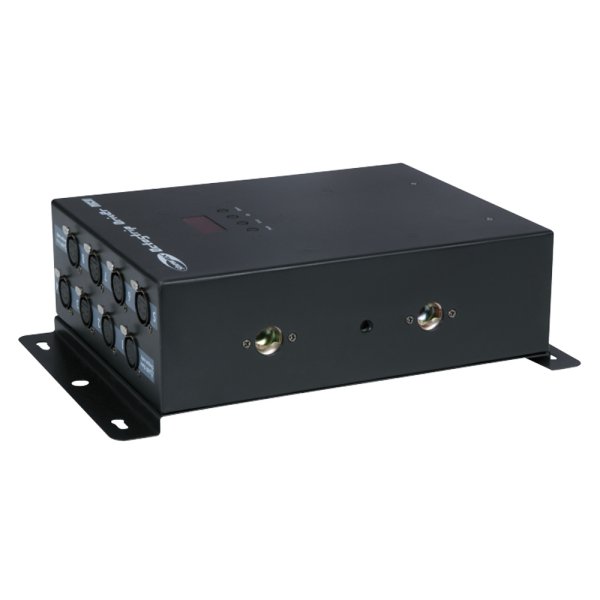

HIGHLITE Showtec Controller for Octostrip MKII [42233]

DMX & Art-Net control
The LED Octostrip MKII is the successor of the popular Octostrip. The controller supports Art-Net protocol, which facilitates the use of device while operating in the full RGB mode (192-Ch mode). It has updated colour presets and built-in colour flows for use of horizontal and vertical directions which are accessible via DMX (in 6-Ch, 8-Ch, 14-Ch, 26-Ch and 50CH channel modes).

仕様

Control and Programming
Control Mode
Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channels
6, 8, 14, 26, 50, 192, 208
Protocols
Art-Net, DMX
Display
LCD

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz

Electrical Specifications and Connections
Power Supply
100-240 V AC 50-60 Hz
Power Consumption
90 W
Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey

サイズ

Mechanical Specifications
Height (mm)
315 mm
Width (mm)
200 mm
Depth (mm)
92 mm
Weight
2.5 kg
IP Rating
IP20 (indoor use only)
Housing
Aluminium die-cast
Colour
Black

Product Properties
Cooling
Convection

Rigging
Mounting Options
Clamp, Quick-Lock

Thermal Specifications
Maximum Ambient Temperature
40 °C

Included Items
Included Cables
Power Pro Cable
