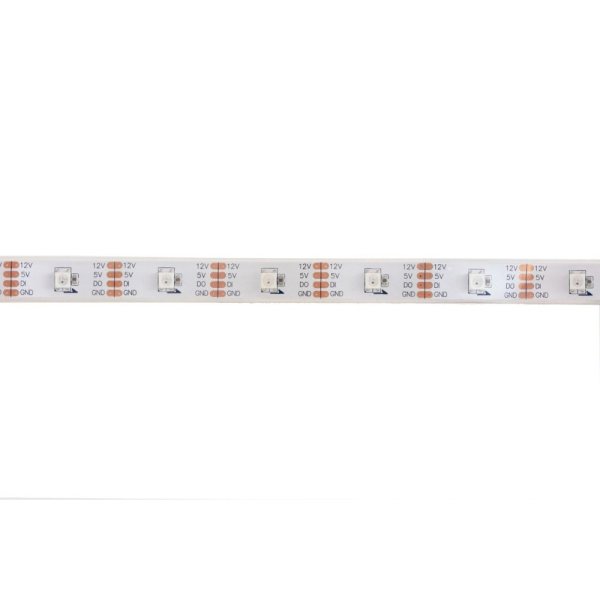

Advatek Light DCDC30 Pixel Strip - White（アドバテック ライト）

30 LEDs/m RGB 5m pixel strip with built-in DC/DC converter (removes any need for power injection), adhesive backing and molded Advatek plug.
Note: DCDC30-Black has been discontinued. The new and improved Blaze-30 Pixel Strip is now available, bringing extra features to your lighting design. Read more about these features, and some minor operational differences here. https://www.urakataya.com/product/17796

■特徴
12V - WS2812b (8 bit)
Encased in a silicon tube - IP67 protection grade
5m from first pixel to the last with a 2m leader cable
High quality adhesive backing
Advatek IP68 screw connector intergrates with controllers and extension cables

■DC/DC converter
Internal DC/DC converter that reduces the 12V input voltage down to 5V inside the strip itself, meaning no need for additional power injection.

■Black or White PCB color
Available in either black or white to suit the specific background they are installed in, so as to minimize the impact of the strips when switched off.

■■仕様
■Power
Input Voltage: 12V DC
Rated Power: 30W

■Physical
Leader Cable Length: 2m
Connector: Advatek 4 pin Female Waterproof
Backing: 3M Adhesive
Wire Gauge: 18AWG
Pixel Spacing (Pixel edge to Pixel edge): 29mm
Operating Temperature: -40°C to +80°C

■Pixels
Total Pixels: 150
Pixel Type: WS2812b (8 bit RGB)
Viewing Angle: 180 degrees
Color: Black

■Other
Protection Grade: IP67 (Silicon Tube)
Cuttable: Yes
Connect Multiple Sets in Series: No
Lifespan: 50,000 Hours

■サイズ
Length: 5m
Width: 14mm
Height: 5mm
Weight: 0.35 Kg



■メーカーサイト
https://www.advateklights.com/dcdc30-pixel-strip
