Advatek Light Blaze-30 Pixel Strip -Black(アドバテック ライト)
商品詳細

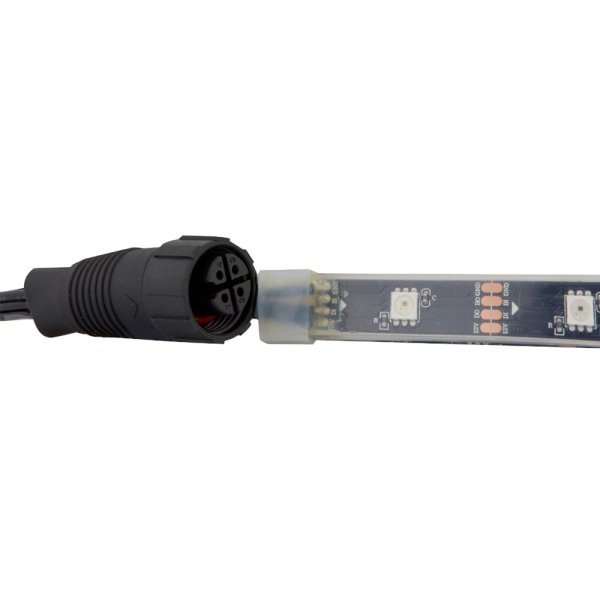

30 LEDs/m RGB 5m pixel strip with every LED containing in-built 12V to 5V voltage regulator, allowing the strip to be cuttable at any length.
■特徴
12V - SK6813 (8 bit)
1.2 kHz PWM rate
Increased PCB copper thickness for greater reliabilty and performance
Encased in a silicon tube - IP67 protection grade
5m from first pixel to the last with a 2m leader cable
High quality adhesive backing
Advatek IP68 screw connector integrates with controllers and extension cables
■Built-in 12V to 5V Regulator
Each LED contains an internal voltage regulator that reduces 12v input down to 5v inside the LED, meaning no need for additonal power injection.
■Cuttable at Any Length
Strip is cuttable at any individual pixel, no need for back feeding power, making your installation a breeze.
■Backup Redundant Data Line
In the event of a pixel failure this allows data to bypass a single failed pixel (other than the very first pixel) allowing the rest of the strip to continue operating.
■Black or White PCB color
Available in either black or white to suit the specific background they are installed in, so as to minimize the impact of the strips when switched off.
■■仕様
■Power
Input Voltage: 12V DC
Rated Power: 20W
■Physical
Leader Cable Length: 2m
Connector: Advatek 4 pin Female Waterproof
Backing: 3M Adhesive
Wire Gauge: 18AWG
Pixel Spacing: 30 LEDs/m
Operating Temperature: -40°C to +80°C
Color:Black
■Pixels
Total Pixels: 150
Pixel Type: SK6813 (8 bit RGB)
Viewing Angle: 180 degrees
■Other
Protection Grade: IP67 (Silicon Tube)
Cuttable: Yes
Connect Multiple Sets in Series: No
Lifespan: 50,000 Hours
■サイズ
Length: 5m
Width: 12mm
Height: 5mm
Weight: 0.3 kg
■メーカーサイト
https://www.advateklights.com/blaze-30-pixel-strip
