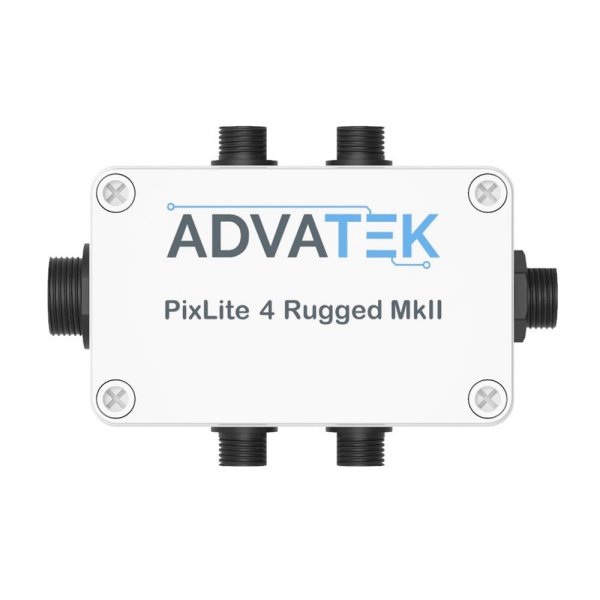

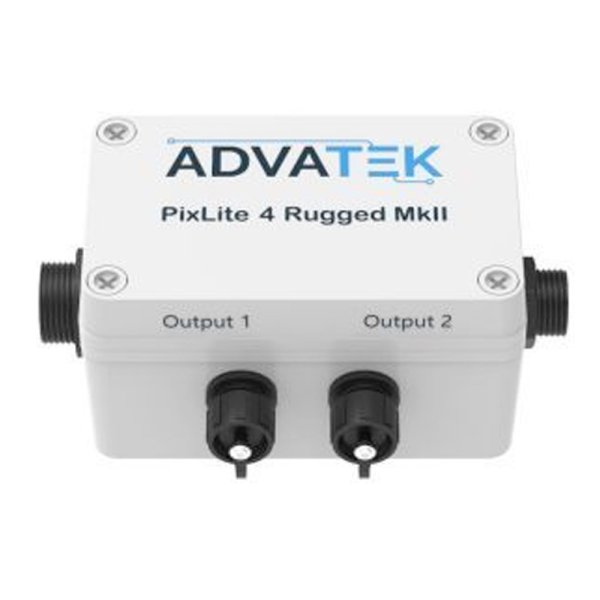

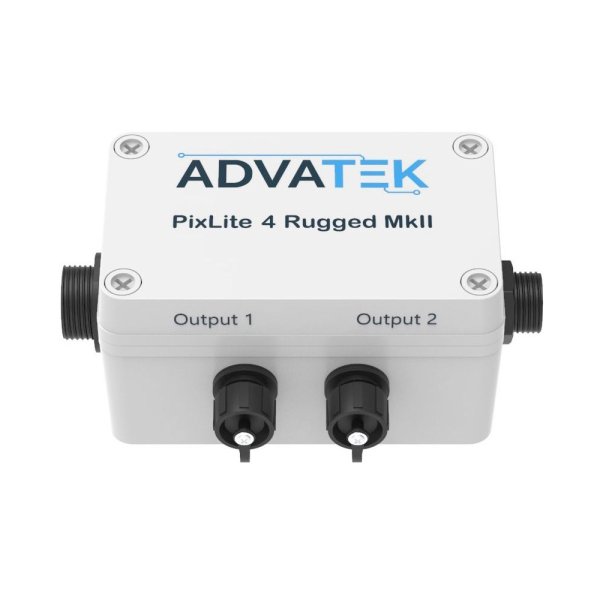

Advatek Light PixLite 4 Rugged Mk2（アドバテック ライト）

A high capacity pixel control device running our 2nd generation processor. A compact Plug and Play style solution in an IP65 rated enclosure.
Note: Power supplies and/or connectors are sold separately. See our range of accessories here, or contact us for more information.

■特徴
Connect up to 680 RGB (or 512 RGBW) pixels on each output
Supports up to 16 Universes of Art-Net or Streaming ACN (E1.31) to drive pixel LEDs
High-impact ABS enclosure with waterproof panel connectors

■Extreme flexibility
Expanded mode option for data only pixels offers twice as many digital outputs for faster refresh rates and greater flexibility.
Clocked pixel types have adjustable speeds, allowing you to optimize refresh rate with cable length limitations.
Advanced mapping options are available on every output:
Null pixels | Zig-zag | Reversing | Color order | Pixel grouping | Brightness Limiting

■Wide range of supported chipsets
Advatek is an industry leader with supported pixel protocols. This controller support all the common pixel protocols such as WS2801, WS2811/12/12B/13, APA102/104, TM180x, SK6812/6822, MY9221/9231 plus many more. Click for a full list of supported protocols.

■Real-time user feedback
Remotely monitor the status of your PixLite device in real time. Information such as temperature, bank voltage and online devices are just a click away.

■■仕様
■Power
Input Voltage: 5V-12V DC
Total Current Limit: 30A
Current Per Output: 7.5A

■Data
Standard Outputs: 4
Expanded Outputs: 8
RGB Pixels/Output: 680
RGBW Pixels/Output: 512
sACN Universes: 16
Art-net Universes: 16

■Physical
Fused Pixel Outputs: 4
Output Connector: 4 Pin Advatek Male
Ethernet Inputs: 1
Enclosure: ABS
Mounting: Wall Mountable
Recommended Ambient Temperature: -20°C to +50°C
Max Component Temperature: -40°C to +80°C

■Other
Protection Grade: IP65, UV Resistant

■サイズ
Length: 125mm
Width: 75mm
Height: 70mm
Weight: 0.275Kg



■メーカーサイト
https://www.advateklights.com/pixlite-4-mk2-rugged
