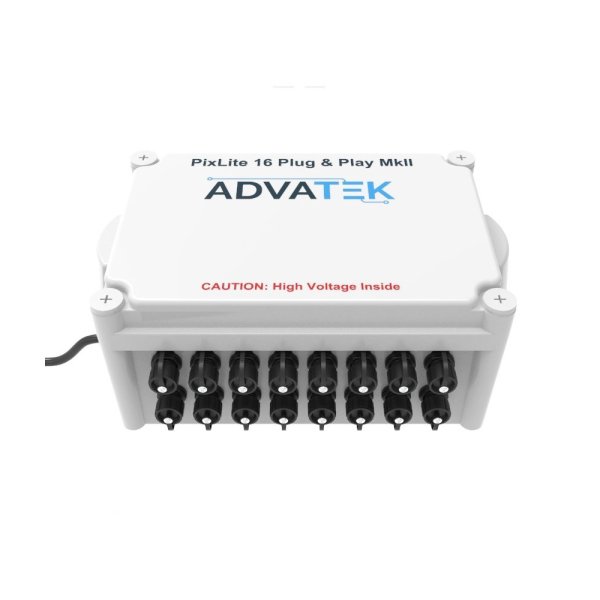

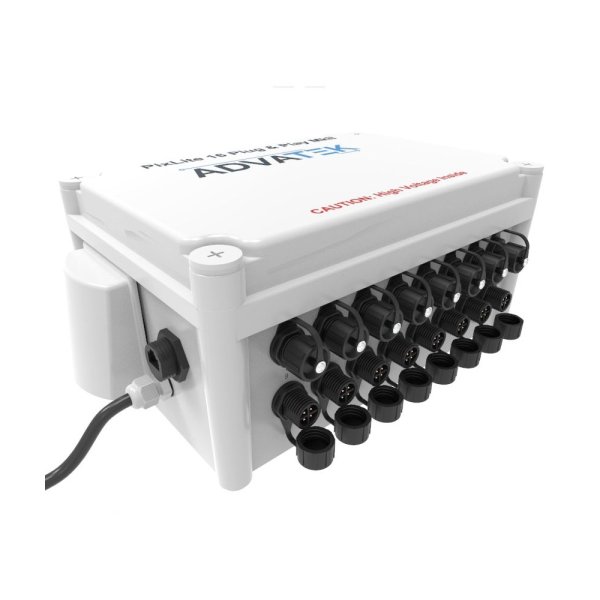

Advatek Light PixLite 16 Plug & Play Mk2（アドバテック ライト）

A highly flexible pixel control device running our 2nd generation processor. Directly connect your pixels with 300 - 320W of built in power.

■特徴
Plug and Play form factor ideal for installations requiring fast, reliable setup
Supports up to 32 Universes of Art-Net or Streaming ACN (E1.31) to drive pixel LEDs
Supports a wide range of pixel protocols and advanced configuration options

■Extreme flexibility
Expanded mode option for data only pixels offers twice as many digital outputs for faster refresh rates and greater flexibility.
Clocked pixel types have adjustable speeds, allowing you to optimize refresh rate with cable length limitations.
Advanced mapping options are available on every output:
Null pixels | Zig-zag | Reversing | Color order | Pixel grouping | Brightness Limiting

■Wide range of supported chipsets
Advatek is an industry leader with supported pixel protocols. This controller support all the common pixel protocols such as WS2801, WS2811/12/12B/13, APA102/104, TM180x, SK6812/6822, MY9221/9231 plus many more. Click for a full list of supported protocols.

■Real-time user feedback
Remotely monitor the status of your PixLite device in real time. Information such as temperature, bank voltage and online devices are just a click away.

■■仕様
■Power
Input Voltage: 88V-260V AC
Total Power: 300W @ 5V / 320.4W @ 12V
Channel Power: 18.75W @ 5V / 20W @ 12V

■Data
Standard Outputs: 16
Expanded Outputs: 32
RGB Pixels/Output: 340
RGBW Pixels/Output: 256
sACN Universes: 32
Art-net Universes: 32

■Physical
Fused Pixel Outputs: 16
Output Connector: 4 Pin Advatek Male
Ethernet Inputs: 1
Air Vents: 2
Enclosure: Polycarbonate
Mounting: Wall Mountable
Operating Temperature: -10°C to +60°C (Derating Applies > 50°C)

■Other
Protection Grade: Rainproof, UV Resistant
Cooling: Active Fan

■サイズ
Length: 300mm
Width: 190mm
Height: 130mm
Weight: 3Kg



■メーカーサイト
https://www.advateklights.com/pixlite-16-mk2-plug-and-play
