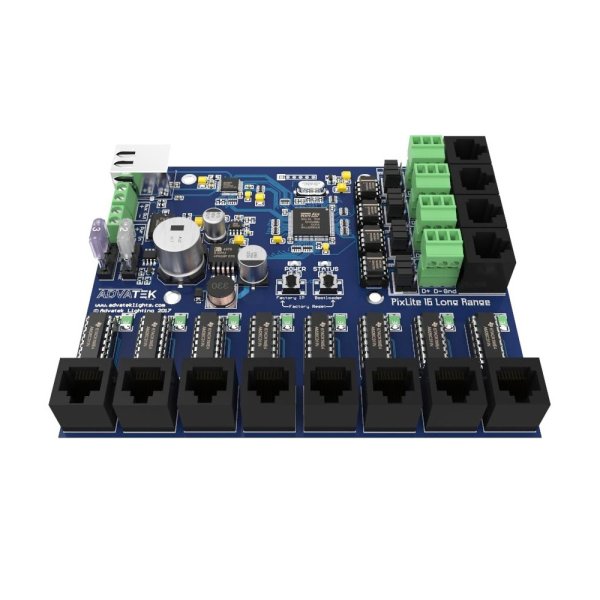

Advatek Light PixLite 16 Long Range Mk2（アドバテック ライト）
商品詳細
A high capacity pixel control device running our 2nd generation processor. Drive up to 16,320 pixels using 96 universes over ethernet.
■特徴
Control your pixels from over 300+m away using up to 8 small receiver boards
Supports up to 96 Universes of Art-Net or Streaming ACN (E1.31) to drive pixel LEDs
Supports a wide range of pixel protocols and advanced configuration options
■Extreme flexibility
Expanded mode option for data only pixels offers twice as many digital outputs for faster refresh rates and greater flexibility.
Clocked pixel types have adjustable speeds, allowing you to optimize refresh rate with cable length limitations.
Advanced mapping options are available on every output:
Null pixels | Zig-zag | Reversing | Color order | Pixel grouping | Brightness Limiting
■Wide range of supported chipsets
Advatek is an industry leader with supported pixel protocols. This controller support all the common pixel protocols such as WS2801, WS2811/12/12B/13, APA102/104, TM180x, SK6812/6822, MY9221/9231 plus many more. Click for a full list of supported protocols.
■Real-time user feedback
Remotely monitor the status of your PixLite device in real time. Information such as temperature, bank voltage and online devices are just a click away.
■Precision timing
Supports Art-Sync packets, allowing synchronization between many PixLite devices across your display.
■Native DMX512 output support
Supports 4 additional DMX512 differential outputs when using the E1.31 protocol. Control your existing DMX512 fixtures as well as your pixels using one convenient solution.
■■仕様
■Power
Input Voltage: 5V-24V DC
Operating Current: 1.5A @ 5V DC
Logic Fuse: 2A blade
■Data
Standard Outputs: 16
Expanded Outputs: 32
RGB Pixels/Output: 1020
RGBW Pixels/Output: 768
sACN Universes: 100
Art-net Universes:100
■Physical
RJ45 Data Outputs: 8
Recommended Ambient Temperature: -20°C to +50°C
Max Component Temperature: -40°C to +80°C
■Other
DMX512 Outputs: 4
Fan Output: 15W
■サイズ
Length: 220mm
Width: 120mm
Height: 30mm
Weight: 0.3Kg
■メーカーサイト
https://www.advateklights.com/pixlite-16-mk2-long-range-control-board
