Fiilex Matrix COLOR（フィーレックス） [新品]
商品詳細

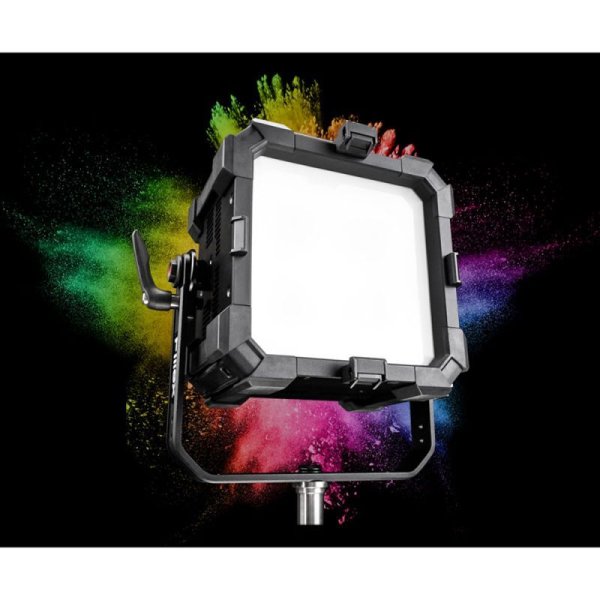

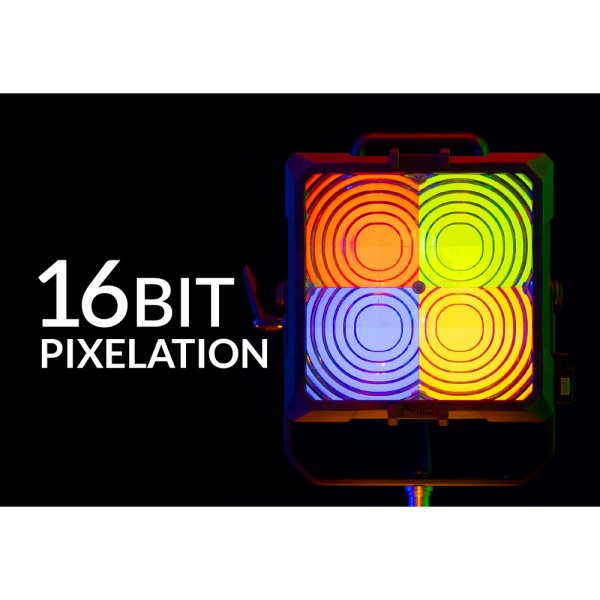

The Matrix Color is a 320W LED fixture that combines high-fidelity soft-source illumination with a focusable, fresnel-like forward punch. This optical versatility is made possible by Fiilex’s custom Dense Matrix LED technology, which also features smooth dimming to 0%, no flicker, and very high CRI. Two snap-on fresnel accessories are available to narrow the Matrix Color’s standard 100° spread down to 30 or 18°.
■仕様
・Fresnel Diameter Optional Quad Fresnel Leans (Removable)

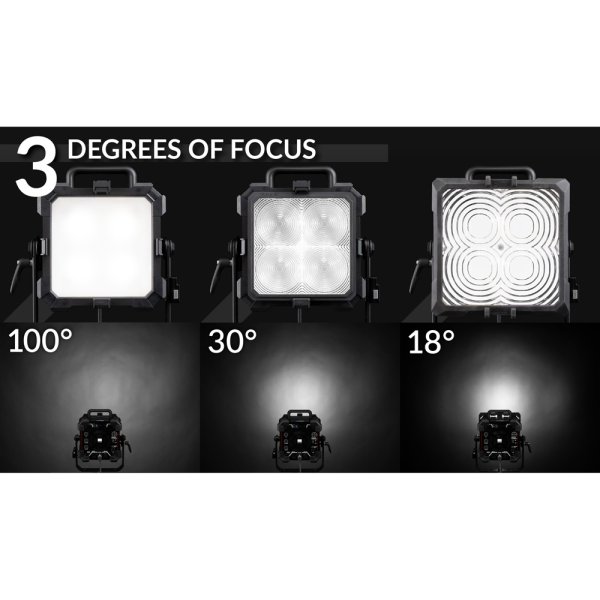

・Beam Angle 100° (30° or 18° with fresnel accessories)
・CCT Range 2000-10000K continuous tuning + magenta/green shift
・CRI 95 Typical.
・TLCI 90 Typical.

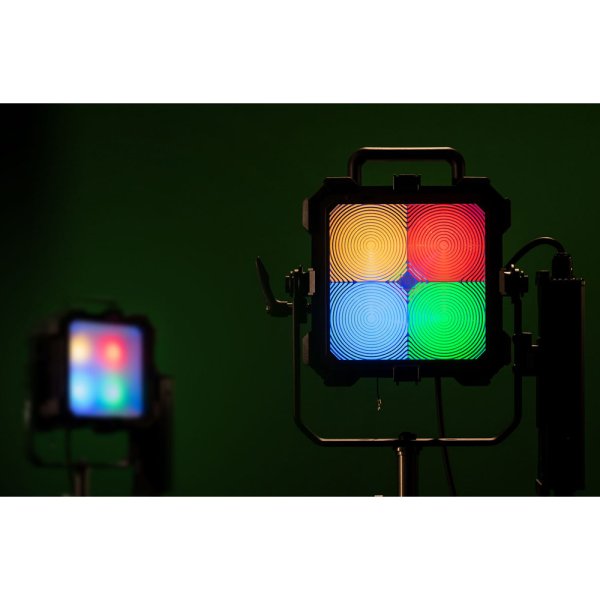

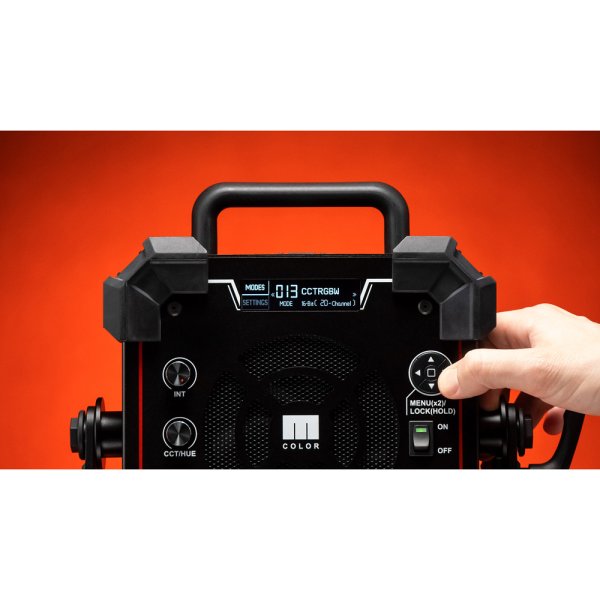

・Control Modes CCT, HSI, Gels, Effects, RGBW, CIEx,y, PXL4, ICTHS etc.
・Dimming 100% - 0% Flicker Free
・Dimming Modes Smooth, Sharp
・Light Engine (Four) 75W DiCon Dense Matrix LED

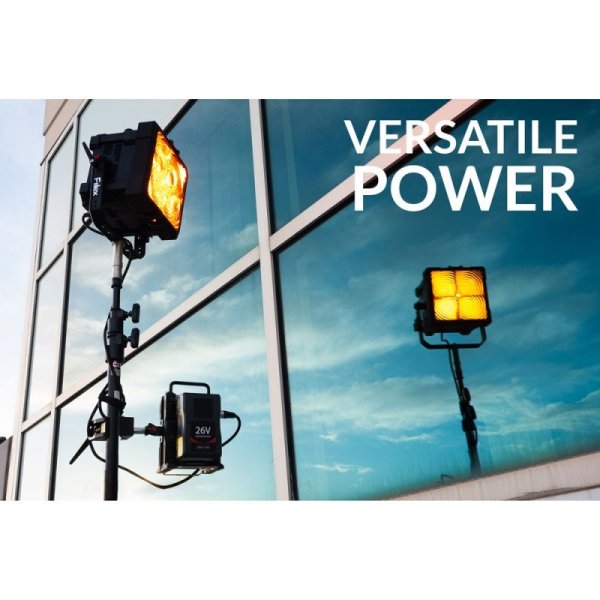

・Power Consumption 320W Max AC | 300W Max DC
・DC Input 48V DC
・AC Input 100 - 240V AC, 50 〜 60Hz
・Power Port XLR-3
・DMX Port XLR-5
・Weight Fixture & Yoke: 4.5kg | Power Adapter: 2.9kg

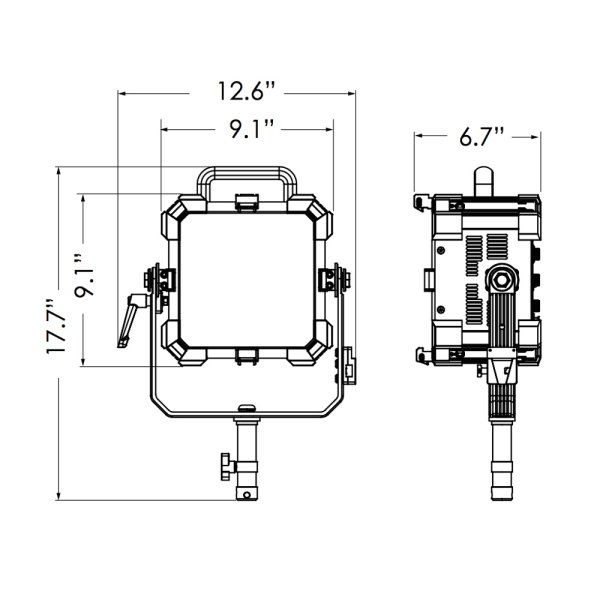

・Size (L x W x H) 17.1cm x 32.1cm x 45.0cm
・Mount Type Baby Stud 5/8" Female (16mm) & Junior Stud 1-1/8" Male (28mm)

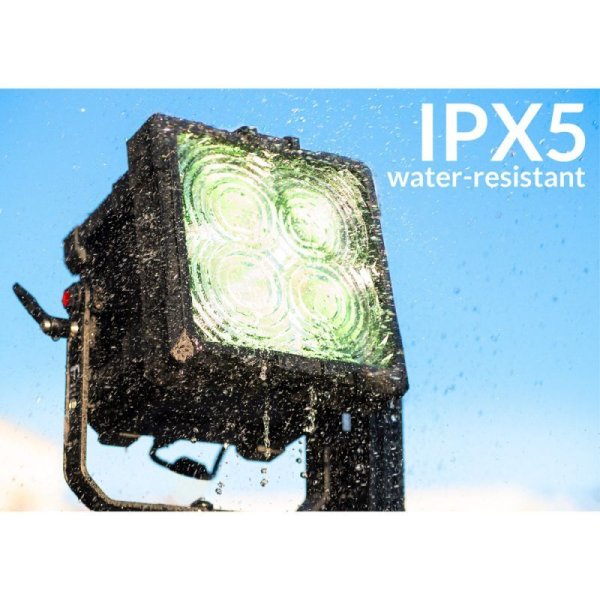

・IP Rating IP-X5 (Water-Resistant)
・Thermal Design Advanced Vapor Cooling System (Fan Cooled)
・Operating Temperature 0-40ºC
■型番
・FLXMAG4KCLR

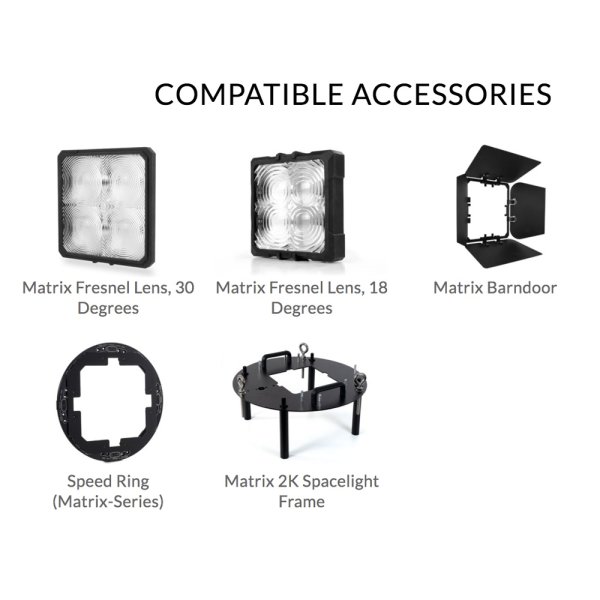

■オプションアクセサリー
・FLXMX-FRNL30 Matrix Fresnel Lens, 30 Degrees
https://www.fiilex.com/products/Accessories_Matrix_Fresnel.php
・FLXMX-FRNL18 Matrix Fresnel Lens, 18 Degrees
https://www.fiilex.com/products/Accessories_Matrix_18degreeFresnel.php
・FLXA068 Matrix Barndoor
https://www.fiilex.com/products/Accessories_Matrix_Barndoor.php
・FLXA088 Speed Ring (Matrix-Series)
https://www.fiilex.com/products/Accessories_Speed_Ring_Matrix.php
・FLXA083 Matrix 2K Spacelight Frame
https://www.fiilex.com/products/Accessories_Matrix_2KSpacelightFrame.php
■データシート（英語）
https://www.fiilex.com/downloads/Matrix_CL/5100066-004_A1_DATASHEET%20for%20MATRIX%20COLOR.pdf
■ユーザーガイド（英語）
https://www.fiilex.com/downloads/Matrix_CL/5870148-003_A1_USER%20GUIDE%20for%20MATRIX%20COLOR.pdf
■メーカーサイト
https://www.fiilex.com/products/Matrix_Color.php
