ワイヤレスDMX受送信機 マルチバース Vero Transceiver [CTI_7400-5903]

ワイヤレスDMX受送信機 マルチバース Vero Transceiver [CTI_7400-5903]

価格: 195,990円(税別)

(税込: 215,589円)

数量:

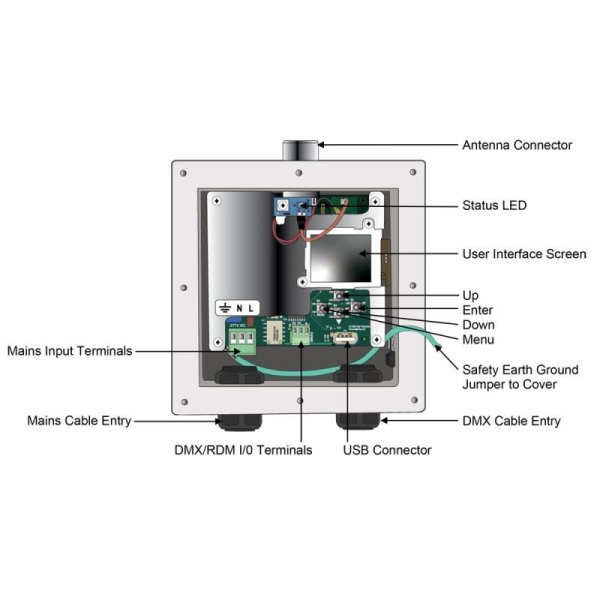

The Multiverse Vero Transceiver brings the advanced features of the Multiverse wireless DMX/RDM system to outdoor installations for architecture and entertainment. The Multiverse Vero Transceiver is housed in a NEMA 4 / IP66 package that provides protection from the outdoor elements. Its internal backlit LCD display simplifies setup and gives feedback on system performance. Each unit comes with a dual band 2.5dBi Outdoor Omni-directional Antenna.

The Multiverse Vero Transceiver 2.4GHz (P/N 7400-5903) contains a 2.4GHz radio for use worldwide.

■■仕様
・P/N 7400-5903
・Frequency 2.4GHz
・Universes 1

■Physical
・Height (unit only) 165.0mm
・Width 152.0mm
・Depth 102.0mm
・Weight 0.77kg
・Antenna 2.4GHz 2.5dBi
・User Interface Internal Backlit LCD display
・Construction NEMA 4 / IP66 Aluminum enclosure

■Electrical
・Power 90-277VAC input, 1A max, on 3 pin screw terminals
・DMX DMX In and Out via 3 pin screw terminals

■Radio Technology
・Latency 4 ms average
・RF Sensitivity -95dBm
・Loss of Data Behavior Output stops
・Broadcast Power 3.2mW, 10mW, 32mW, 100mW EIRP
・Broadcast Modes Adaptive, Full, Low, Mid, High, Max
・Show IDs Multiverse: 217; Neo: 70
・RDM Features RDM Proxy, RDM Responder

■Product Information
・Use Environment Indoor or outdoor
・Operating Temperature 25ºC-60ºC
・IP Rating IP66
・Compliance FCC, IC, CE, UKCA, ARIB, cETLus Listed, RoHS

■データシート(英語)
https://citytheatrical.com/docs/default-source/Cut-Sheets/7400-5903-multiverse-vero

■マニュアル(英語)
https://citytheatrical.com/docs/default-source/pdfs/7400-5903-multiverse-vero-manual

■メーカーサイト
https://www.citytheatrical.com/Products/multiverse-vero?dept=e71ecae2-cd2e-49f8-9565-f6a61de65f48&subDept=b1d77afb-b839-6b94-9d71-ff00001a956a&pid=596181fb-b839-6b94-9d71-ff00001a956a
