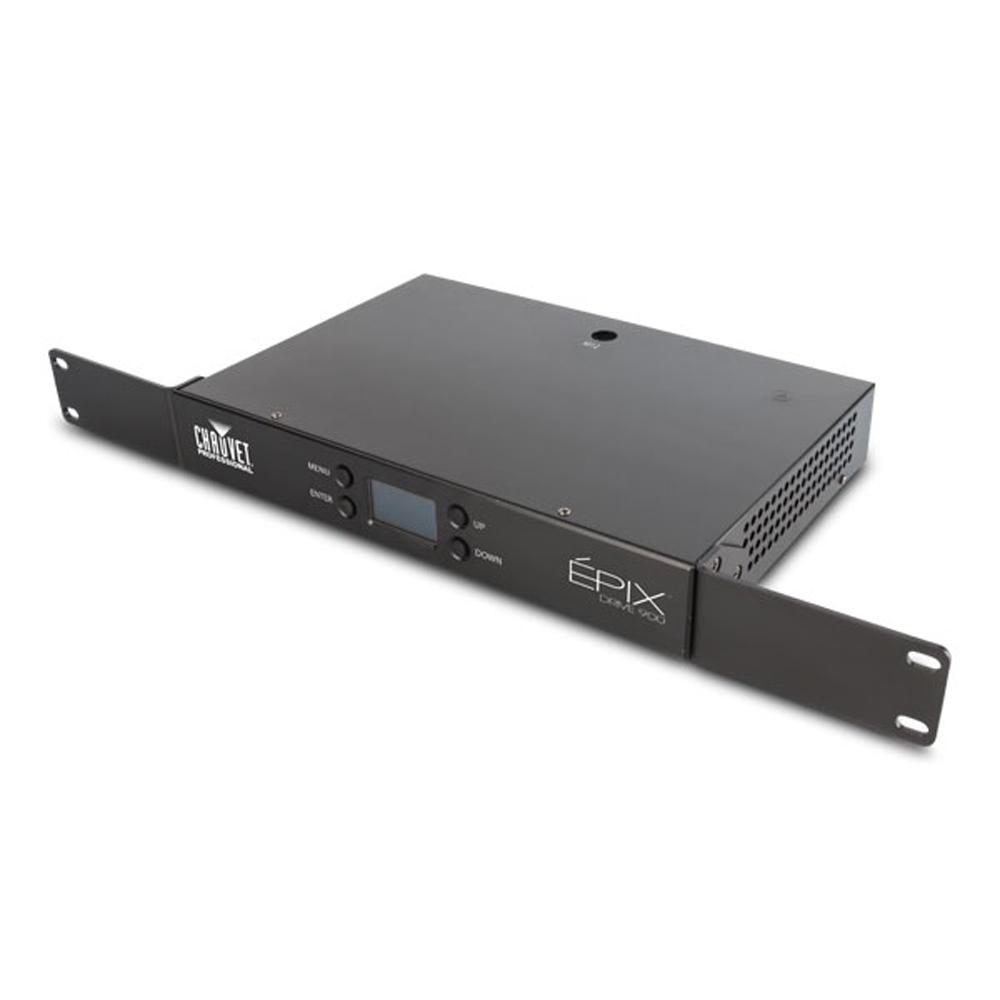

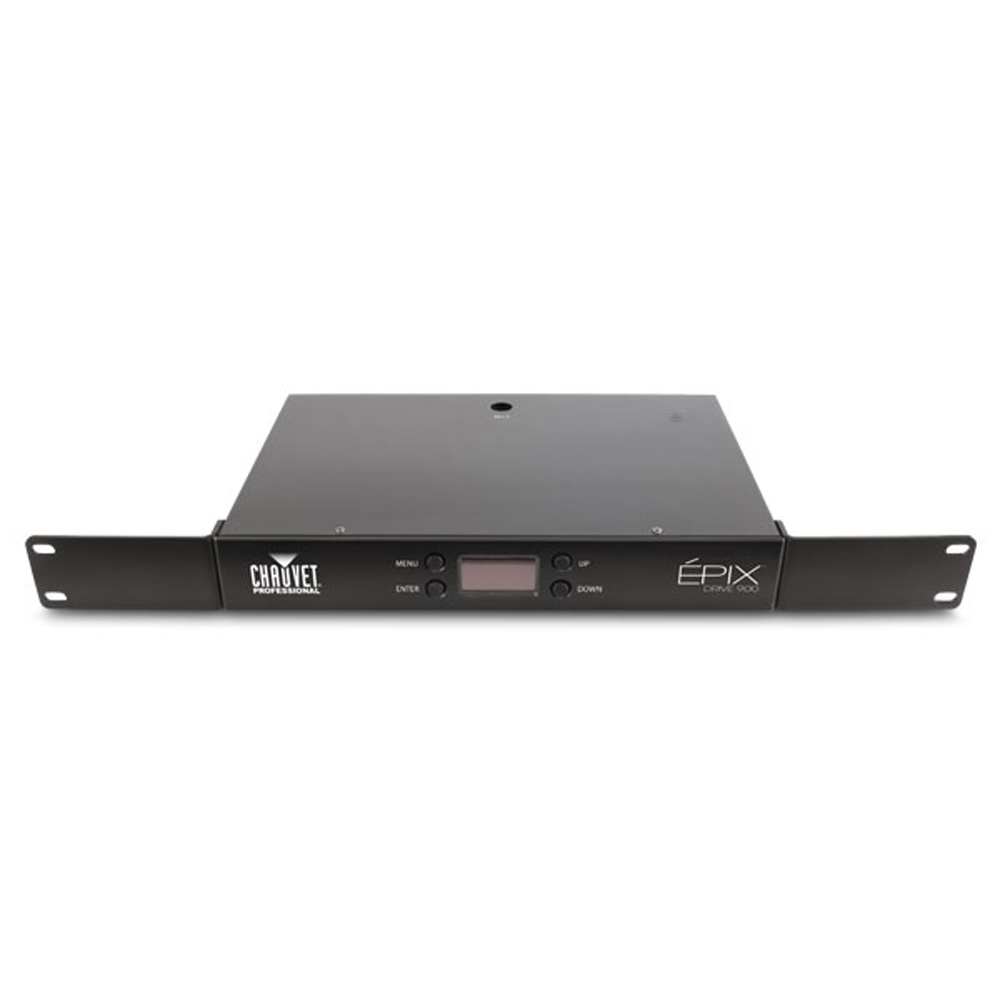

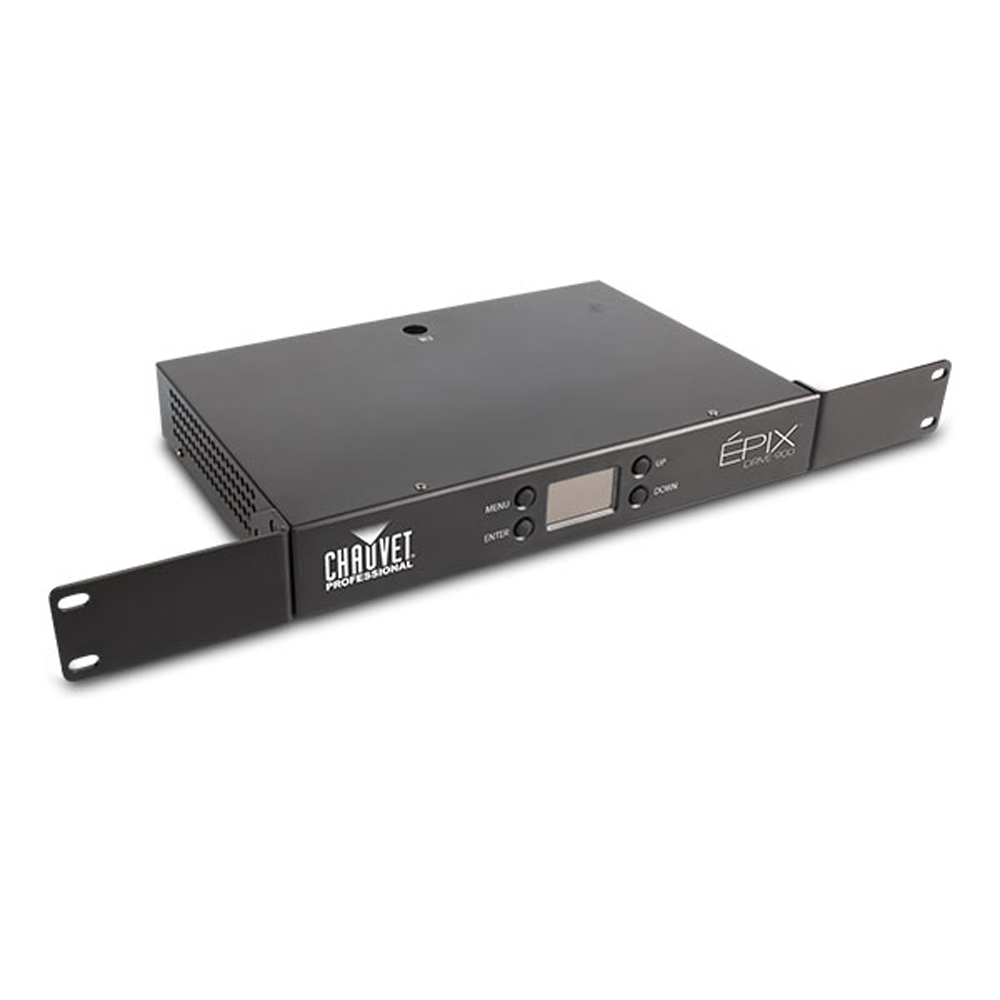

?PIX Drive 900 hosts the processing and power supply for the ?PIX Tour system. It supports either 18 ?PIX Strip Tours or 6 ?PIX Bar Tours, or any combination of the two, with a total capacity of 900 LEDs ?PIX Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ?PIX lights.

■概要
・The processing and power center of the ?PIX Tour system will drive any combination of ?PIX Tour products, up to 900 LEDs
・Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
・Quickly and easily configure the ?PIX Drive 900 using the built-in OLED display
・Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
・Supports up to 18 ?PIX Strip Tours or 6 ?PIX Bar Tours
・Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
・Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)
・Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate

■■仕様
■CONSTRUCTION / PHYSICAL
・Dimensions (with rack ears): 483 x 193 x 50 mm
・Dimensions (without rack ears): 283 x 193 x 50 mm
・Weight: 2.46 kg
・Weight (shipping weight): 3.5 kg
・Threaded Bolt: M12Exterior Color: Black
・Housing Material: Steel
・Rackmount: 1U

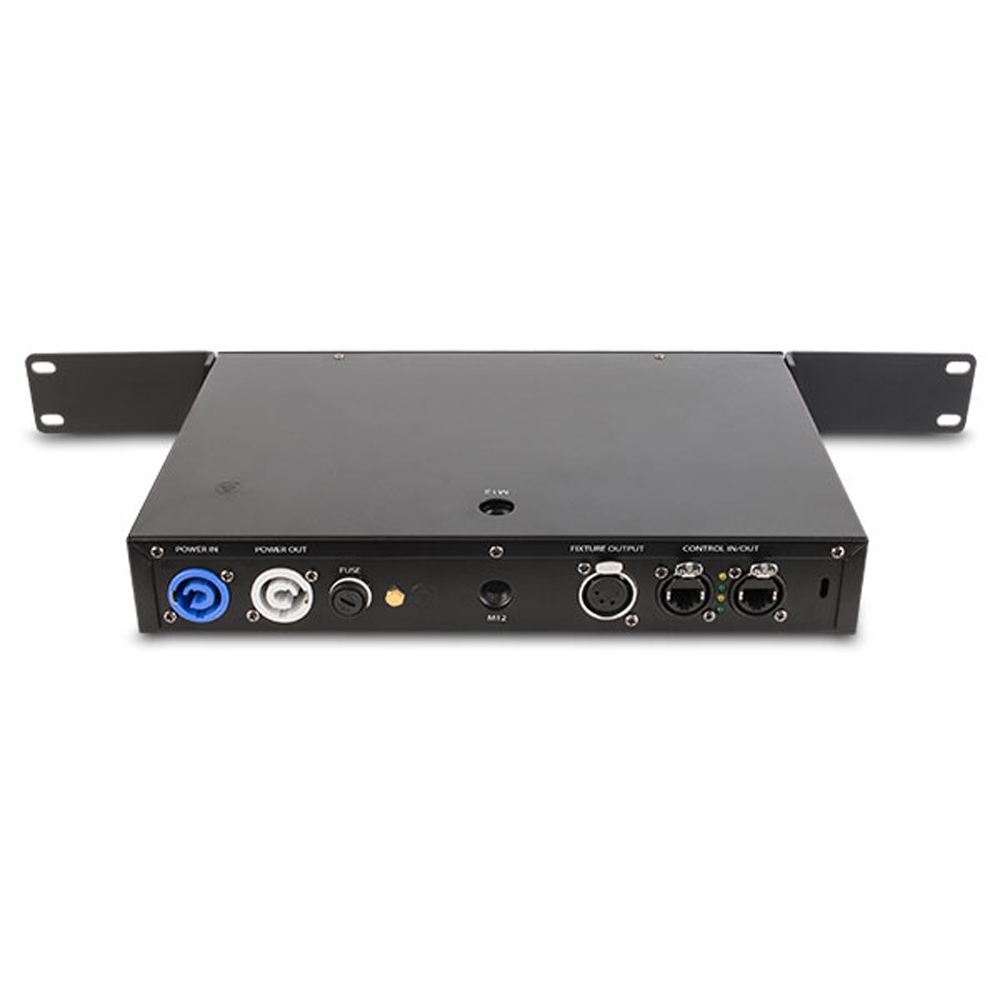

■CONNECTIONS
・Power Connection: Edison (Local) plug to Neutrik powerCON
・Power Input: Neutrik powerCON
・Power Output: Neutrik powerCON
・Device Outputs (4-pin XLR): 1
・Physical Linking: 18 inline ?PIX Strip Tour or 6 inline ?PIX Bar Tour
・Data Connectors: Neutrik etherCON
・Cable Length (power): 1.5 m
・Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
・Total max. cable length (shielded cables) between ?PIX Drive 900 and last ?PIX Tour fixture: 64 m
・Max. cable length (shielded cables) between ?PIX Drive 900 and first ?PIX Tour fixture: 20 m
・Max. cable length (shielded cables) between ?PIX Tour fixtures: 18 m
・Total max. cable length (unshielded cables) between ?PIX Drive 900 and last ?PIX Tour fixture: 91 m
・Max. cable length (unshielded cables) between ?PIX Drive 900 and first ?PIX Tour fixture: 45 m
・Max. cable length (unshielded cables) between ?PIX Tour fixtures: 30 m

■CONTROL
・Control Protocol: Art-Net, Kling-Net, sACN
・Control Channels: 6 Art-Net/sACN Universes

■ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
・Power and Current: 299 W, 2.53 A @ 120 V, 60 Hz
・Power and Current: 299 W, 1.44 A @ 208 V, 60 Hz
・Power and Current: 299 W, 1.31 A @ 230 V, 50 Hz
・Power and Current (resting): 23 W, 0.195 A @ 120 V, 60 Hz
・Power and Current (resting): 32 W, 0.156 A @ 208 V, 60 Hz
・Power and Current (resting): 32 W, 0.133 A @ 230 V, 50 Hz
・Output Voltage: 48 VDC
・Maximum Load: 18 ?PIX Strip Tour or 6 ?PIX Bar Tour (per output)

■CABLE
・4PXLREXT16IN
・4PXLREXT5FT
・4PXLREXT50FT

■CERTIFICATIONS / QUALIFICATIONS
・CE, MET
・IP Rating: IP20, dry location
・Temperature (Ambient): -20 °C to 45 °C

■WHAT'S INCLUDED
・?PIX Drive 900
・Neutrik powerCON power cord
・Rack ears (2)
・Bag of rack ear mounting screws
・Rubber feet (4)

■OPTIONAL ACCESSORIES
・ArKaos Media Master Express + KN software
・Clamps
・Neutrik powerCON cables
・Neutrik etherCON cables
・4-pin XLR cables

■クイックリファレンスガイド(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/07/Epix_Drive_900_QRG_Rev10_ML4.pdf

■マニュアル(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/07/EPIX_Drive_900_UM_Rev6.pdf

■メーカーサイト
https://www.chauvetprofessional.com/products/epix-drive-900/
