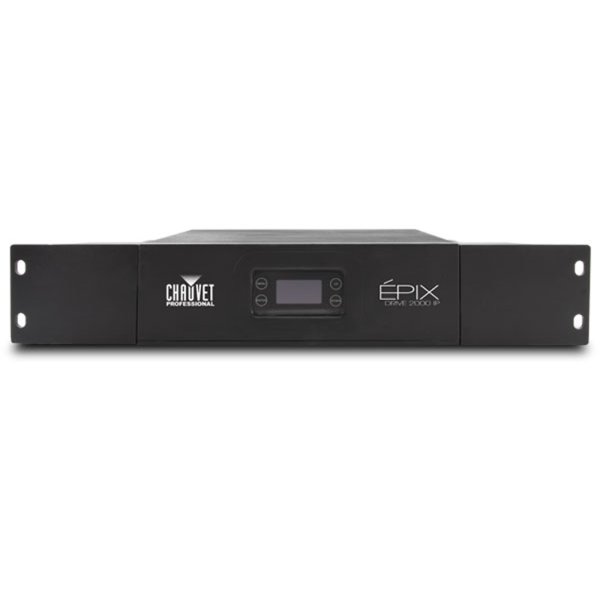

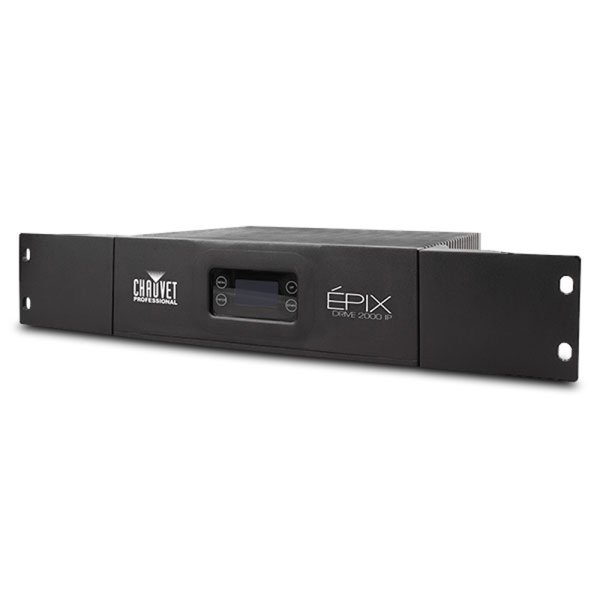

Chauvet Professional EPIX Drive 2000 IP [新品]

Chauvet Professional EPIX Drive 2000 IP [新品]

販売価格: 170,990円(税別)

(税込価格: 188,089円)

台数割引
複数台お買い上げの場合台数に応じてお値段が下がります!


無料メンテナンス

当サイトからご購入された機材を無料で1年間保証期間中修理サービスをいたします。
無料保証期間後も、ご購入された機材に不具合が生じた場合もしくは定期メインテナンスのご利用も可能です。
保証サービス:

販売価格: 170,990円(税別)

(税込価格: 188,089円)

数量:
?PIX Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the ?PIX IP and Tour system. With a maximum capacity of 2000 LEDs, ?PIX Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ?PIX fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.

■概要
・The processing and power center of the ?PIX Tour system will drive any combination of ?PIX Tour products, up to 2000 LEDs.
・Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets.
・Quickly and easily configure the ?PIX Drive 2000 IP using the built-in OLED display and touchscreen menu.
・Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (Bar/Strip/Strip IP).
・Supports up to 20 ?PIX Strip IP, 36 ?PIX Strip Tours or 12 ?PIX Bar Tours.
・Easily daisy chain fixtures directly from the 2 outputs of the Drive 2000 IP.
・Advanced power management design allows you to position the Drive 2000 IP up to 150 ft away from your last fixture (using unshielded cable).
・Works with Arkaos Media Master Express and the Kling-net control protocol for a plug-n-play system that requires almost no training to operate.

■■仕様
■CONSTRUCTION / PHYSICAL
・Dimensions (with rack ears): 483 x 84 x 263 mm
・Dimensions (without rack ears): 268 x 84 x 263 mm
・Weight: 5.4 kg
・Exterior Color: Black
・Housing Material: Aluminum
・Rackmount: 2U

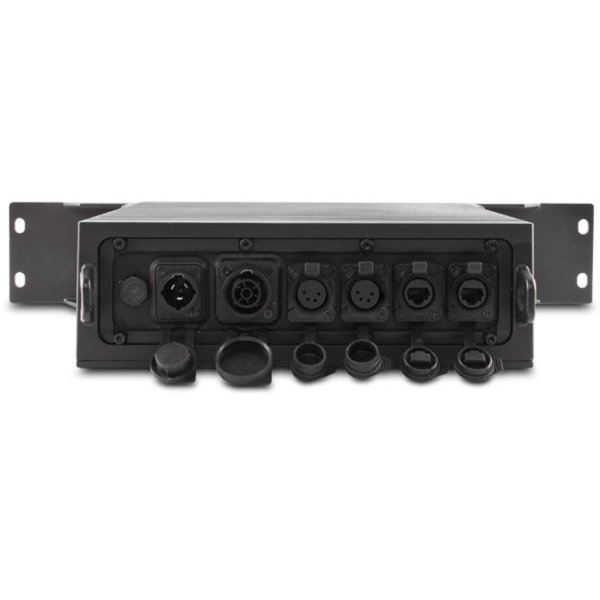

■CONNECTIONS
・Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
・Power Input: Seetronic Powerkon IP65
・Power Output: Seetronic Powerkon IP65
・Device Outputs (4-pin XLR): 2
・Physical Linking (port A): 10 inline ?PIX Strip IP Tour, 18 inline ?PIX Strip Tour or 6 inline ?PIX Bar Tour
・Physical Linking (port B): 10 inline ?PIX Strip IP Tour, 18 inline ?PIX Strip Tour or 6 inline ?PIX Bar Tour
・Data Connectors: Seetronic Etherkon IP65
・Cable Length (power): 1.5 m
・Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
・Total max. cable length (shielded cables) between ?PIX Drive 2000 and last ?PIX Tour or IP fixture: 64 m
・Max. cable length (shielded cables) between ?PIX Drive 2000 and first ?PIX Tour or IP fixture: 20 m
・Max. cable length (shielded cables) between ?PIX Tour or IP fixtures: 18 m
・Total max. cable length (unshielded cables) between ?PIX Drive 2000 and last ?PIX Tour or IP fixture: 91 m
・Max. cable length (unshielded cables) between ?PIX Drive 2000 and first ?PIX Tour or IP fixture: 45 m
・Max. cable length (unshielded cables) between ?PIX Tour or IP fixtures: 30 m

■CONTROL
・Control Protocol: Art-Net, Kling-Net, sACN
・Control Universes: 10 Art-Net/sACN Universes per port (20 total per device)
・Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, or 150

■ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
・Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
・Power and Current: 560 W, 2.69 A @ 208 V, 60 Hz
・Power and Current: 558 W, 2.5 A @ 230 V, 50 Hz
・Power and Current (resting): 16 W, 0.136 A @ 120 V, 60 Hz
・Power and Current (resting): 31 W, 0.147 A @ 208 V, 60 Hz
・Power and Current (resting): 31 W, 0.138 A @ 230 V, 50 Hz
・Output Voltage: 48 VDC
・Maximum Load: 10 ?PIX Strip IP or 18 ?PIX Strip Tour or 6 ?PIX Bar Tour (per output)

■CERTIFICATIONS / QUALIFICATIONS
・CE, MET
・IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE? valve
・Temperature (ambient): -20 °C to 45 °C
・MET Listing Number: E113093-1101
・US Safety: UL 8750, UL 1573
・Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166

■WHAT'S INCLUDED
・?PIX Drive 2000 IP
・Seetronic Powerkon IP65 power cord

■REQUIRED ACCESSORIES
・Compatible Mounting Options: M12 Clamp

■OPTIONAL ACCESSORIES
・ArKaos Media Master Express + KN software
・Epix Strip Tour
・Epix Strip IP
・4PINIPEXT16IN
・4PINIPEXT5FT
・4PINIPEXT50FT
・Seetronic Powerkon IP65 cables
・Seetronic Etherkon IP65 cables
