Chauvet Professional Ovation B-565FC [新品]

Chauvet Professional Ovation B-565FC [新品]

販売価格: 160,990円(税別)

(税込価格: 177,089円)

台数割引
複数台お買い上げの場合台数に応じてお値段が下がります!


無料メンテナンス

当サイトからご購入された機材を無料で1年間保証期間中修理サービスをいたします。
無料保証期間後も、ご購入された機材に不具合が生じた場合もしくは定期メインテナンスのご利用も可能です。
保証サービス:

販売価格: 160,990円(税別)

(税込価格: 177,089円)

数量:

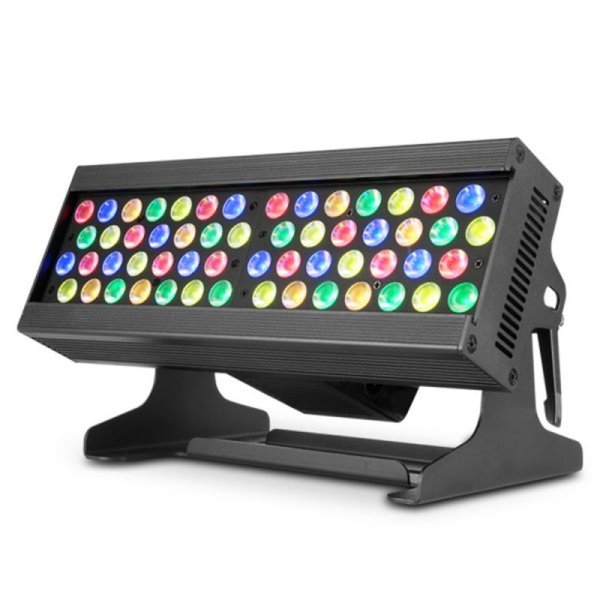

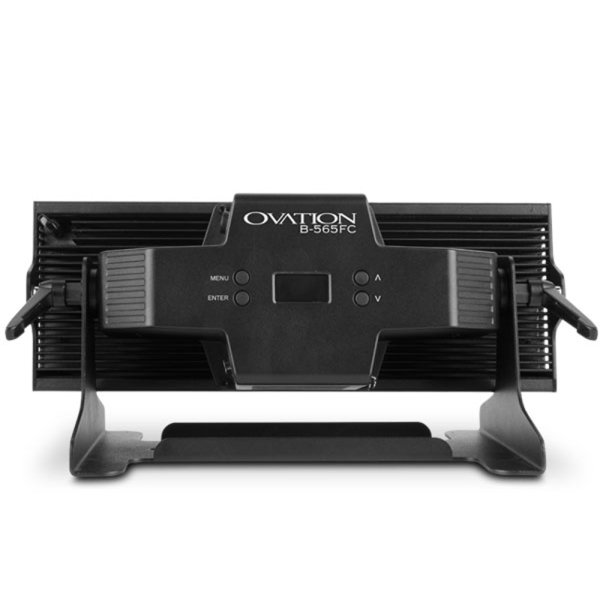

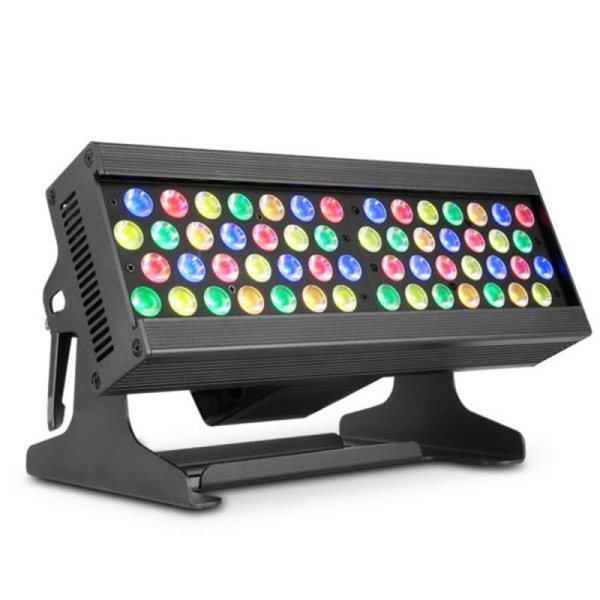

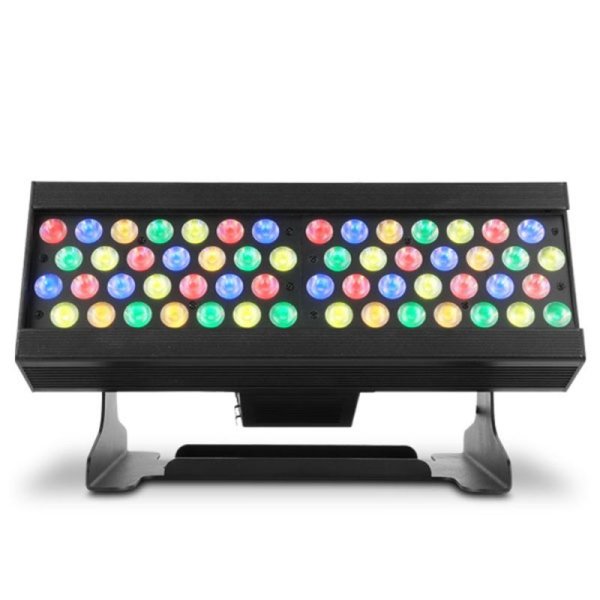

Ovation B-565FC boasts groundbreaking features such as an RGBA-Lime color system and the incorporation of RDM, Art-Net? and sACN plus standard DMX for programming and networking options. This little powerhouse not only makes a great batten-style light, but is also a tremendous standard wash. A holographic filter is included and locks into place so the fixture can be used in any orientation with no worry about the filter sliding out.

■概要
・Full Color LED (RGBAL) batten fixture for theatre, film and production
・Theatre-ready with 16-bit dimming of master dimmer and individual colors
・Multiple control personalities with one or two sections of control
・Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern
・Virtual Color wheel with color matched to popular gel colors
・Art-Net, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
・Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
・Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
・Nearly silent operation for use in studio and theatre applications

■■仕様
■OPTICAL
・Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 3 W, (650 mA), 50,000 hours life expectancy
・Color Temperature (range): 2800 K to 10000 K
・CRI (3200 K): 80
・Installed Optics: 20°
・Beam Angle (horizontal): 19°
・Beam Angle (vertical): 20°
・Beam Angle (horizontal w/filter): 36°
・Beam Angle (vertical w/filter): 20°
・Field Angle (horizontal): 37°
・Field Angle (vertical): 37°
・Field Angle (horizontal w/filter): 66°
・Field Angle (vertical w/filter): 40°
・Lumens: 6,523
・Illuminance: 1,637 lux @ 5 m
・Illuminance (w/filter): 470° @ 5 m
・Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

■DYNAMIC EFFECTS
・Dimmer: Electronic
・Shutter/Strobe: Electronic
・Strobe Rate: 0 to 30 Hz
・Standalone Color Mixing: Yes
・Color Temperature Presets: Yes
・Dim Modes: 4
・Built-in Automated Programs: Yes

■CONSTRUCTION / PHYSICAL
・Dimensions: 355 x 190 x 207 mm
・Weight: 5.3 kg
・Exterior Color: Black
・Housing Material: Aluminum die-cast
・Accessory Holder/Gel Frame Size: 352 x 93 mm

■CONNECTIONS
・Power Connection: Edison (Local) plug to Neutrik powerCON
・Power Input: Neutrik powerCON
・Power Output: Neutrik powerCON
・Data Connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
・Cable Length (power): 1.5 m

■CONTROL
・Protocol(s): Art-Net?, DMX, RDM, sACN
・DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
・Art-Net? Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31
・Modes/Personalities: 16 personalities

■ELECTRICAL
・Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
・Power Linking: 13 units @ 120 V; 23 units @ 208 V; 26 units @ 230 V
・Power and Current: 117 W, .995 A @ 120 V, 60 Hz
・Power and Current: 119 W, 0.569 A @ 208 V, 60 Hz
・Power and Current: 119 W, 0.519 A @ 230 V, 50 Hz

■CERTIFICATIONS / QUALIFICATIONS
・CE, MET, FCC
・IP Rating: IP20, dry location

■WHAT'S INCLUDED
・OVATION B-565FC
・Neutrik powerCON power cord
・Wall Washing Filter

■OPTIONAL ACCESSORIES
・Professional Clamps: CTC-50HC, CTC-50HCN
・Neutrik powerCON cables
・Neutrik etherCON cables
・DMX Cables
・Flight Cases

■ORDERING INFO
・Item Code: 03031236

■クイックリファレンスガイド(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/01/Ovation_C-805FC_QRG_ML5_Rev6.pdf

■マニュアル(英語)
https://www.chauvetprofessional.com/wp-content/uploads/2015/01/Ovation_C-805FC_UM_Rev6.pdf

■メーカーサイト
https://www.chauvetprofessional.com/products/ovation-b-565fc/
