The Light Source Purlin Clamp(ライトソース) [新品]

The Light Source Purlin Clamp(ライトソース) [新品]

販売価格はお問い合わせください。

商品詳細

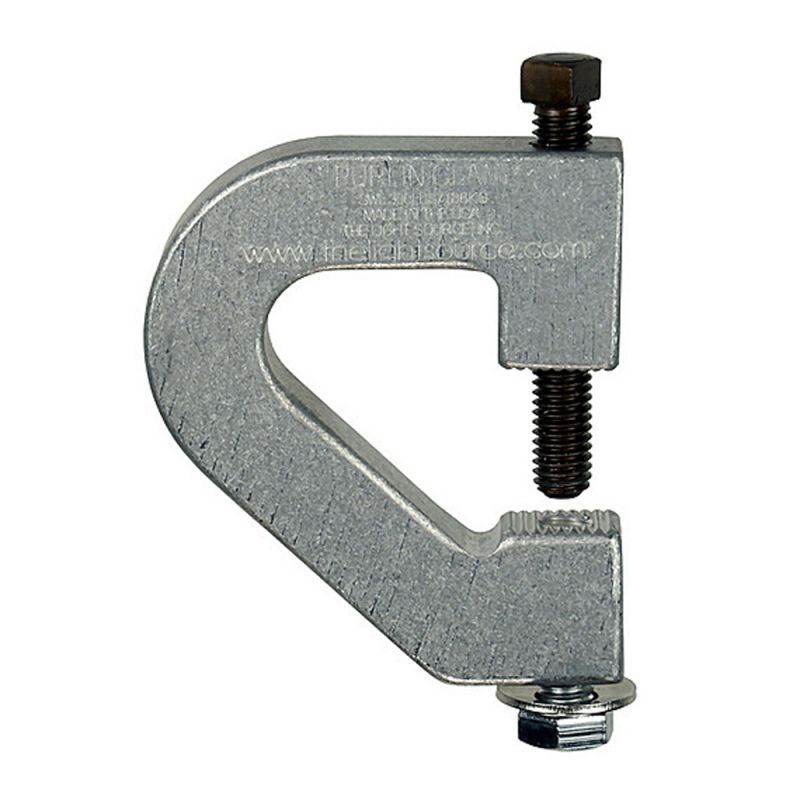

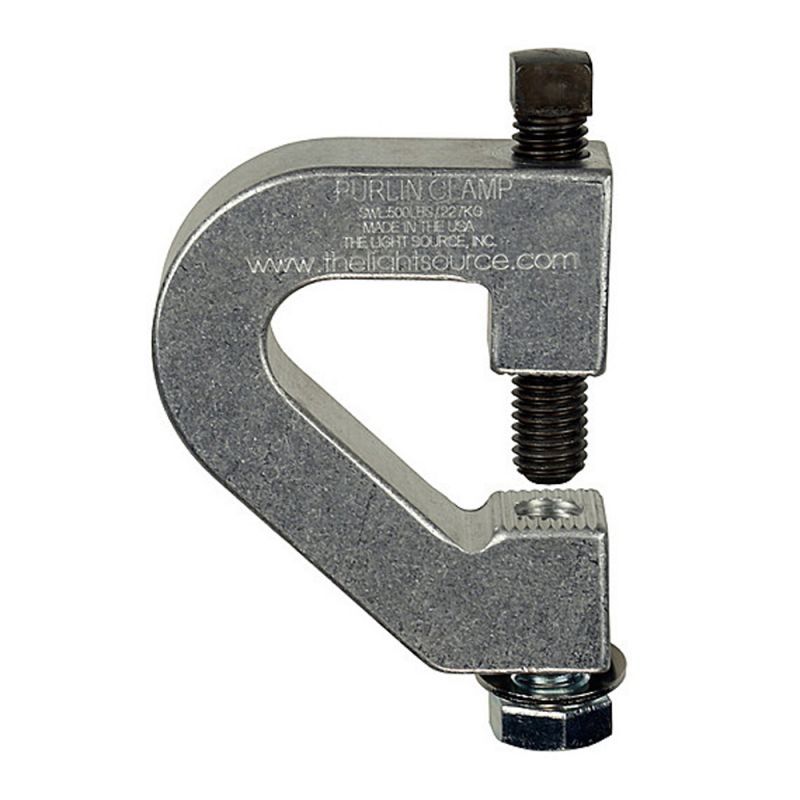

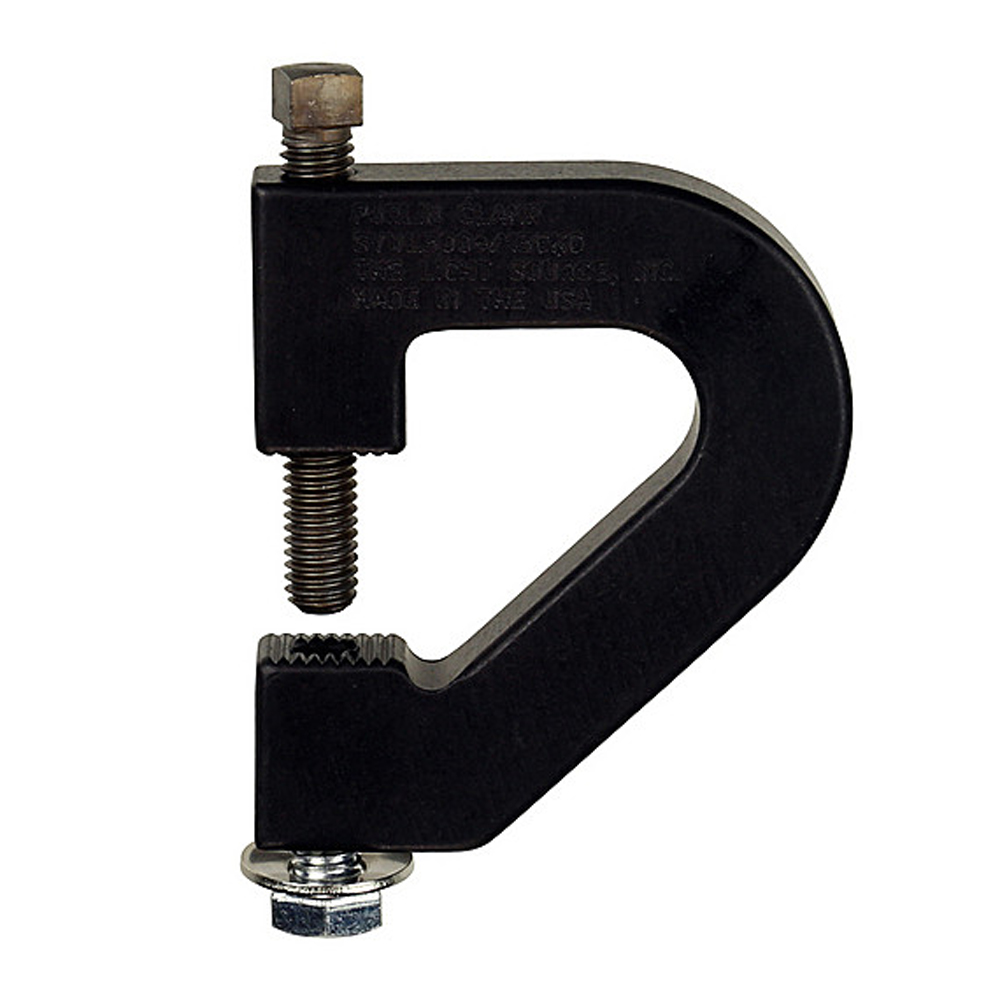

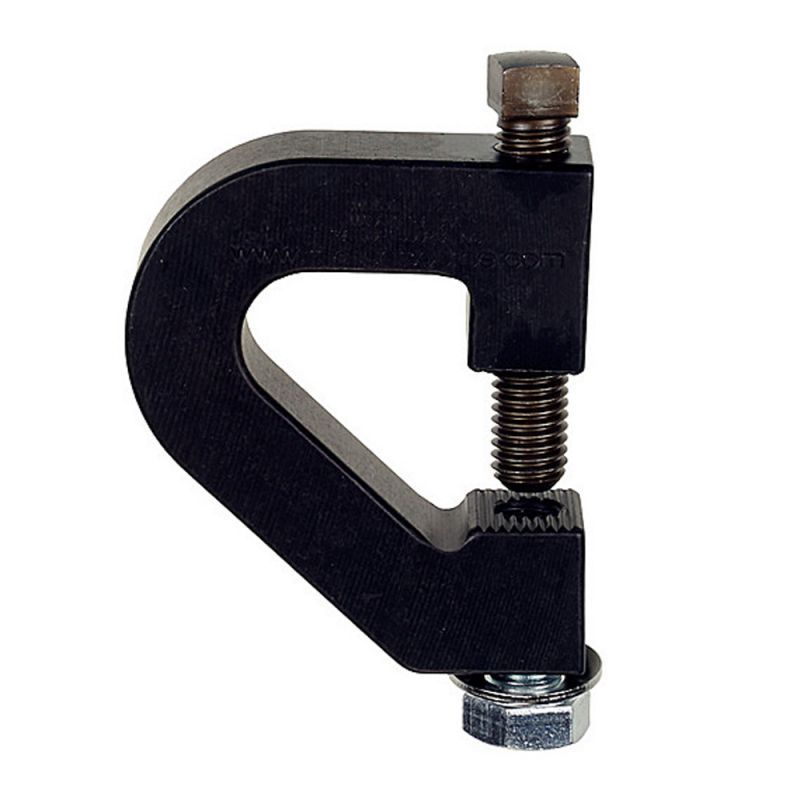

The Purlin Clamp is perfect for installing almost anything to bar joists, purlins and I-beams up to 1" thick. A 1/2"-13 × 2.5″ fully threaded square head set screw is provided for locking onto the structural member. A 1/2"-13 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 1/2"-13 tpi threaded rod to support a load at any length. The Purlin Clamp has Micro-grooves for a secure connection to beam. The 1/2" fastener Purlin Clamp body is extruded from aircraft grade aluminum and is 1" thick.

The Purlin Clamp is also available with 3/8"-16 tpi fasteners. 3/8"-16 tpi x 2.5" fully threaded square head set screw is provided for locking onto the structural member. A 3/8"-16 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 3/8"-16 tpi threaded rod to support a load at any length.

■データシート
https://www.thelightsource.com/products/spec_sheet_pdf/purlin-clamp-112.pdf

■メーカーサイト
https://www.thelightsource.com/products/purlin-clamp-112
