The Light Source 10 Inch Mega-Beam Clamp, 3 ton（ライトソース） [新品]

The Light Source 10 Inch Mega-Beam Clamp, 3 ton（ライトソース） [新品]

販売価格はお問い合わせください。

商品詳細

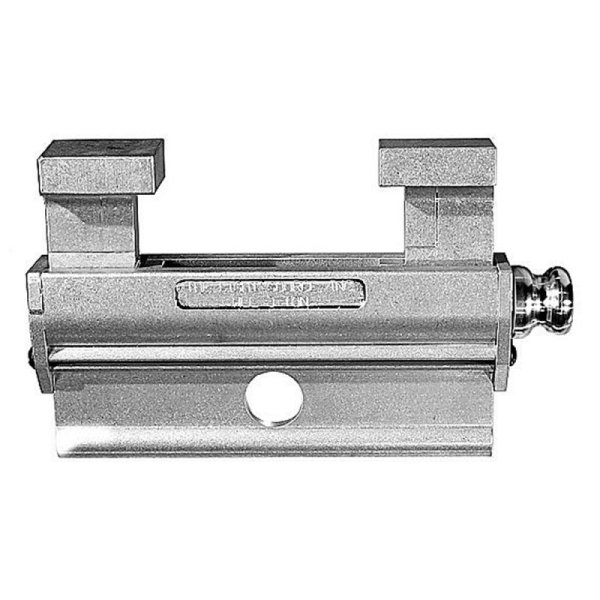

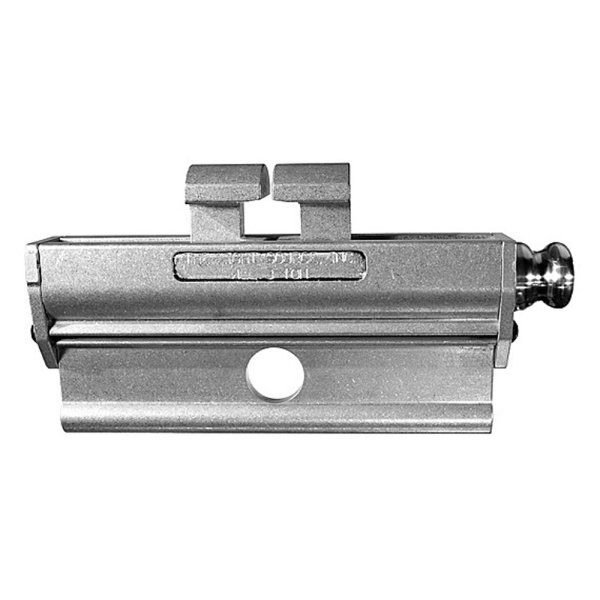

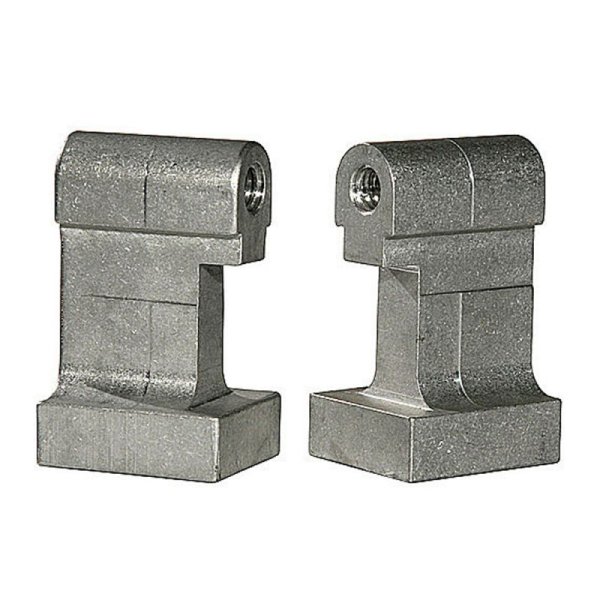

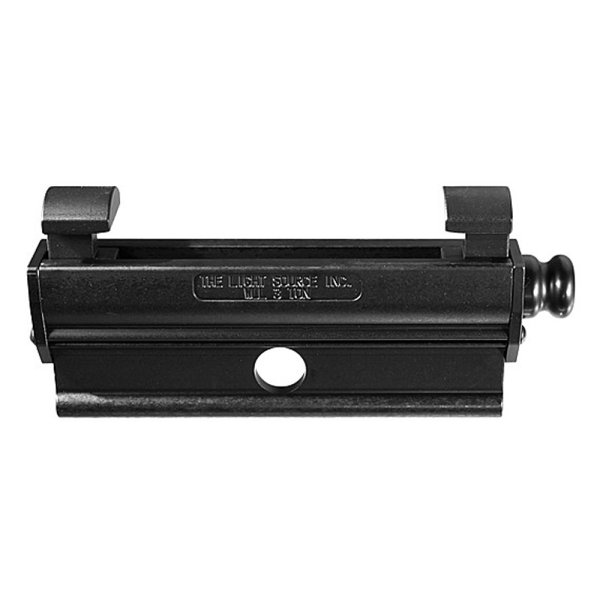

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 10" model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6" tip Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2 inch to 10 inch wide I-Beam flanges up to 1" thick. Center hole is 1-1/2"

■データシート
https://www.thelightsource.com/products/spec_sheet_pdf/10-inch-mega-beam-clamp-3-ton-70.pdf

■メーカーサイト
https://www.thelightsource.com/products/10-inch-mega-beam-clamp-3-ton-70
